RF-105NS Steel Strip Servo Feeder For Stamping

RF-105NS Steel Strip Servo Feeder For Stamping

RF-105NS Steel Strip Servo Feeder For Stamping
RF-105NS Steel Strip Servo Feeder For StampingRF-105NS Steel Strip Servo Feeder For StampingRF-105NS Steel Strip Servo Feeder For StampingRF-105NS Steel Strip Servo Feeder For StampingRF-105NS Steel Strip Servo Feeder For Stamping
CategoriesHigh Speed Roller Feeder
AlbumView larger image
BrandHongEr
ModelRF-105NS
Functionmetal coil high speed roller feeder
Featureequipped with high speed press machin
Namesteel sheet fast roller feeder
Compactpallet decoiler and high speed press
UsageFast metal press and stamping lin
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information
                                          Product Description
RF-105NS High Speed Roller Feeder

RF-105NS can feed metal strip thickness from 0.1mm to 3.5mm, with feeding speed up to 400SPM.


It is mechanical roller feeder, suitable for high speed stamping line, such as eyelet and metal button stamping.



The RF-105NS fast roller feeder often compact with our high speed pallet uncoiler and C frame high speed press for fast stamping line.
Specification
Model
Max. Coil
Width (mm)
Max. Feeding
Length (mm)
Max. Coil
Thickness (mm)
Mould Line
Height (mm)
RF-105NS
100
50
0.1-1.6
55-100
RF-205NS
200
RF-305NS
300
RF-405NS
400
RF-138NS
130
80
60-120
RF-1310NS
130
100
0.1-3.5
70-140
RF-2010NS
200
RF-3010NS
300
RF-4010NS
400
RF-2015NS
200
150
RF-3015NS
300
RF-4015NS
400
RF-1320NS
130
200
RF-2020NS
200
RF-3020NS
300
RF-4020NS
400
Application

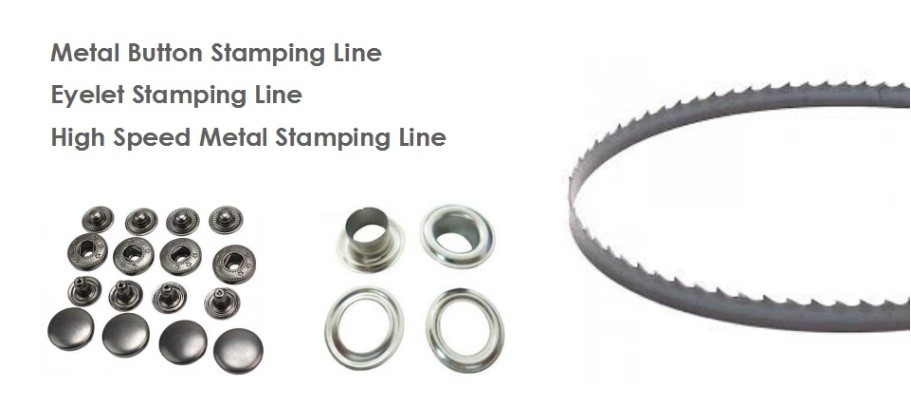

RF-105NS mechanical high speed roller feeder machine works with high speed press machine, compacted with fast metal coil strip flat decoiler and high speed press machine. It is wildly used in fast stamping line for metal eyelet and button stamping line.

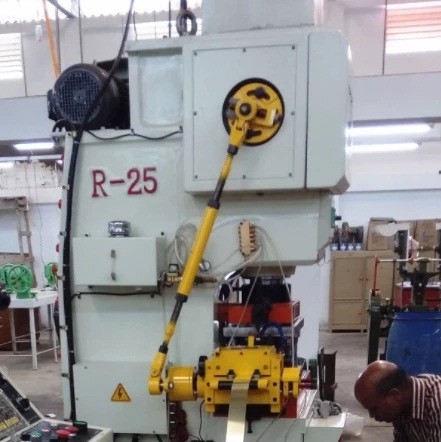

RF-105NS High Speed Roller Feeder

RF-105NS metal strip roller feeder
exported to Bangladesh.





Metal stamping solution suggestion:
Flat Decoiler + RF Roller Feeder + Fast Press

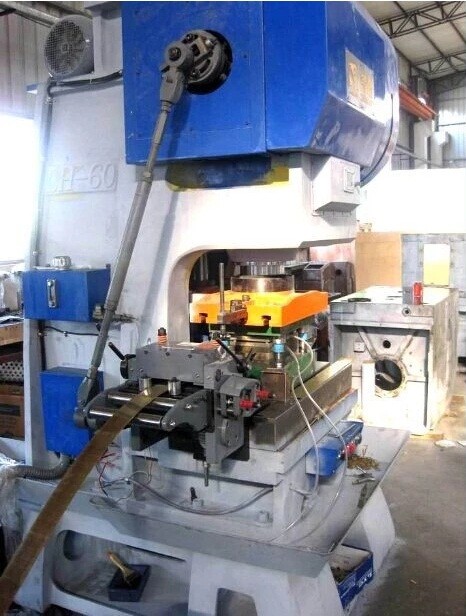

RF-105NS High Speed Roller Feeder

RF-105NS metal strip roller feeder
exported to Malaysia.












Metal stamping solution suggestion:
Flat Decoiler + RF Roller Feeder + Fast Press
