C25 Ton C Type High Speed Press Machine For Metal Stamping

C25 Ton C Type High Speed Press Machine For Metal Stamping

C25 Ton C Type High Speed Press Machine For Metal Stamping
C25 Ton C Type High Speed Press Machine For Metal StampingC25 Ton C Type High Speed Press Machine For Metal StampingC25 Ton C Type High Speed Press Machine For Metal StampingC25 Ton C Type High Speed Press Machine For Metal StampingC25 Ton C Type High Speed Press Machine For Metal Stamping
CategoriesC Frame High Speed Power Press
AlbumView larger image
BrandHongEr
ModelRC-25T
Functionhigh speed press machine for fast stamping
Featuremenchanical press for metal stamping
NameC frame high speed press machine
Compactfast coil unwinder and roller feeder
Usagemetal fabrication and punch
Attributehigh speed punching
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information

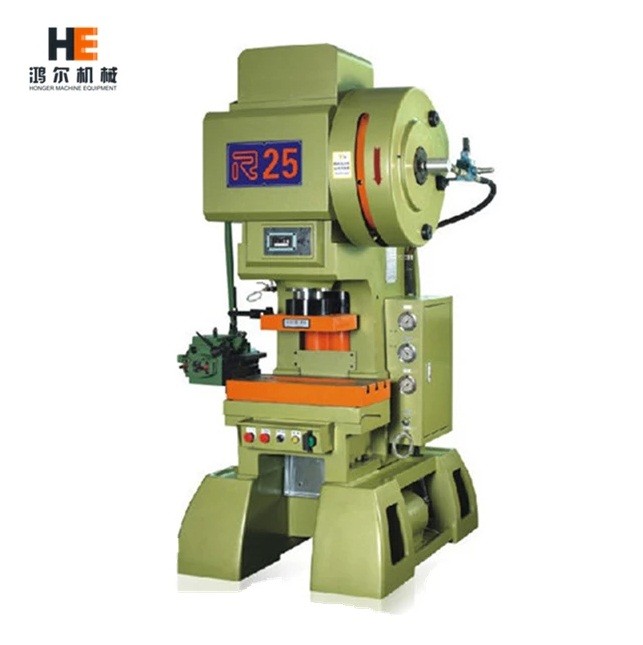

RC-25 Ton C Type High Speed Press Machine For Metal Stamping
                                         Product Description
RC C FRAME HIGH SPEED PRESS
1, The frame body is made by high intensive cast iron, through natural environment eliminates stress.

2, High accuracy transmission gears and high rigidity crank guarantee a long life and high accuracy of press machine;

3, Forced lubrication system ensures the operation reliabilty.

4, Electric control system achieve a high automation operation.

5, Suitable for metal fabrication such as aluminum sheet, stainless steel sheet, copper, iron, etc.

6, Easy to operate and maintain.
Specification
Model
RC-25T
RC-45T
Capacity
25 tons
45 tons
Stroke Length
20 mm
25 mm
30 mm
25 mm
30 mm
40 mm
Stroke per Min
200-1000
200-900
200-800
200-800
200-700
200-600
Die Height
185-215
183-213
180-210
213-243
210-240
205-235
Bolster Area
600 * 300 * 80 mm
680 * 420 * 90 mm
Slide Area
330 * 225 mm
420 * 320 mm
Blanking Hole
100 * 300(400) mm
100 * 400(500) mm
Motor
5 HP
7.5 HP
Gross Weight
2919 kgs
5080 kgs
Loop System
Forceful Automation
Speed Control
Inverter
Clutch & Brake
Air & Friction
Vibration System
Mounting or pneumatic mounting for optional
Model
RC-65T
RC-85T
Capacity
65 tons
85 tons
Stroke Length
30 mm
40 mm
50 mm
40 mm
50 mm
60 mm
Stroke per Min
200-700
200-600
200-500
200-400
200-300
200-300
Die Height
206-256
200-250
196-246
310-360
305-355
300-350
Bolster Area
890 * 520 * 130 mm
1000 * 600 * 140 mm
Slide Area
540 * 340 mm
700 * 450 mm
Blanking Hole
120 * 460(660) mm
170 * 460(700) mm
Motor
15 HP
30 HP
Gross Weight
8016 kgs
14500 kgs
Loop System
Forceful Automation
Speed Control
Inverter
Clutch & Brake
Air & Friction
Vibration System
Mounting or pneumatic mounting for optional
                                                    Application
C frame high speed C-25 ton is often worked with high speed coil handling machine for little matel parts stamping, as eyelets and buttons. and electronic parts.

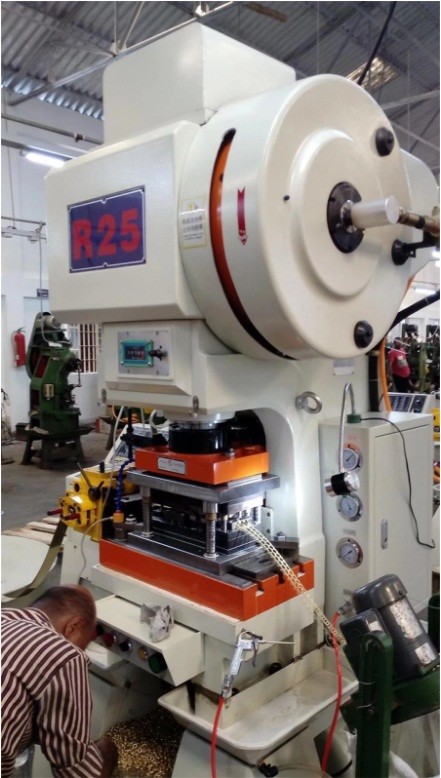

C-25 High speed press machine


C frame 25 ton high speed press machine
equipped with high speed pallet decoiler FU-1000
and high speed roller feeder RF-105NS
for eyelets stamping
in Bangladesh.





Metal stamping solution suggestion:
Pallet uncoiler + High speed roller feeder + Press
