TL-300 Metal Sheet Straightener Machine For Metal Stamping

TL-300 Metal Sheet Straightener Machine For Metal Stamping

TL-300 Metal Sheet Straightener Machine For Metal Stamping
TL-300 Metal Sheet Straightener Machine For Metal StampingTL-300 Metal Sheet Straightener Machine For Metal StampingTL-300 Metal Sheet Straightener Machine For Metal StampingTL-300 Metal Sheet Straightener Machine For Metal StampingTL-300 Metal Sheet Straightener Machine For Metal Stamping
CategoriesTL (0.4-2.2mm) Sheet Metal Straightener
AlbumView larger image
BrandHongEr
ModelTL-300
FeatureAutomatic Leveler Machine
NameHigh Precision Straightening Machine
CompactAutomatic Leveling Stamping Line
UsageFrame Leveler Machine
attributeAuto Straightening Machine
FunctionAuto Metal Strip Straightening Machine
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information
TL-300 Metal Sheet Straightener Machine For Metal Stamping
Description

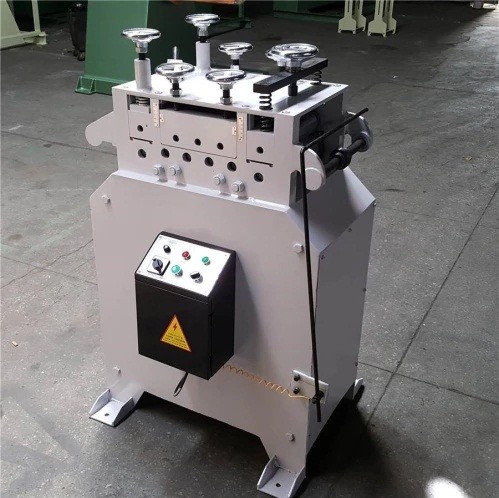

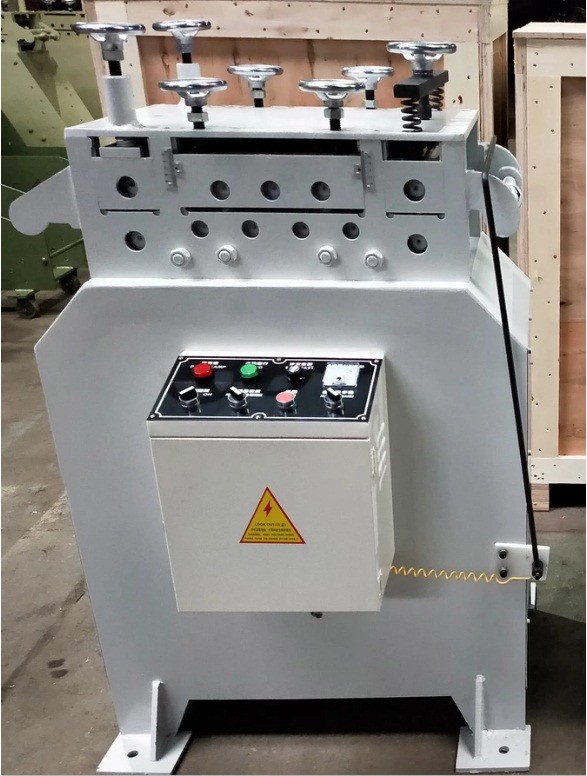

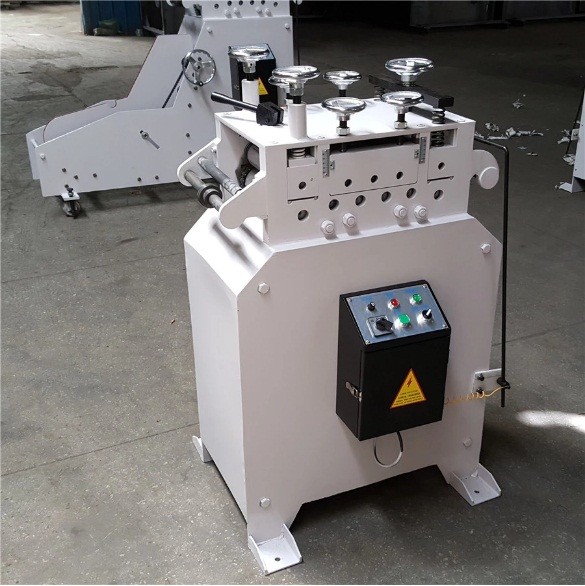

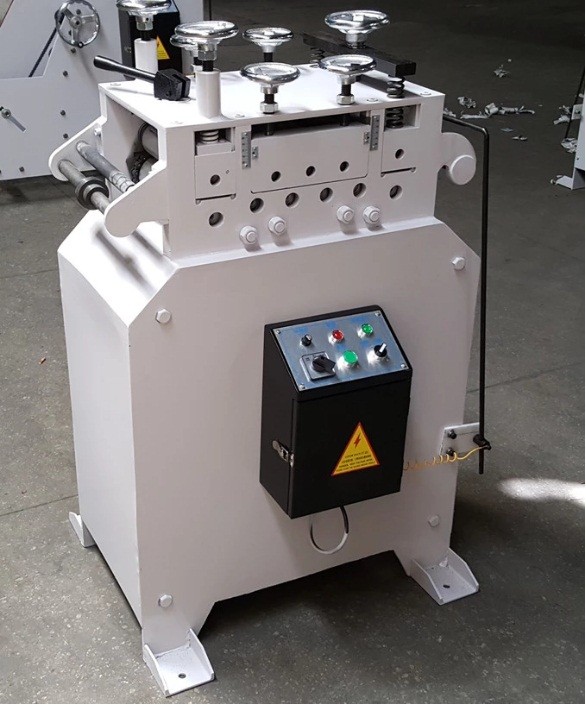

TL-300 Metal Sheet Straightener Machine

1, Straightening metal coil strip thickness from 0.4mm to 2.2mm;

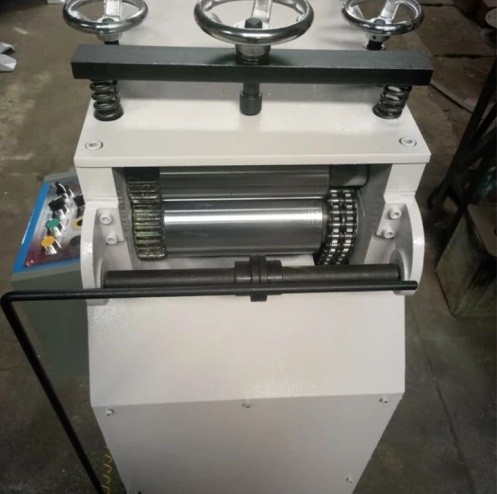

2, With 7 pcs of straightener rollers, electroplated with chrome and with HRC +/-60, 50mm diameter;

3, The straightener rollers can be adjusted by hand wheel;

4, The pinch rollers are frosted so as to prevent the strip from slip.

5, CE is available.
Specification
Model
TL-200
TL-300
TL-400
TL-500
TL-600
Coil width(mm)
200mm
300mm
400mm
500mm
600mm
Coil thickness(mm)
0.4-2.2mm
Speed(m/min)
16
Pinching roller
(diameter*pcs)
60mm*2pcs
80mm*2pcs
Straightener roller
(diameter*pcs)
50mm*7pcs
Motor
1HP
1HP
2HP
2HP
3HP
Application
TL-300 metal strip straightener machine can be used for flattening the metal strip within thickness 0.4-2.2mm, width 300mm. It often compacted with metal coil decoiler, feeder and press machine for metal stamping line or metal cutting line.
TL-300

TL straightener machine
exported to Albania.

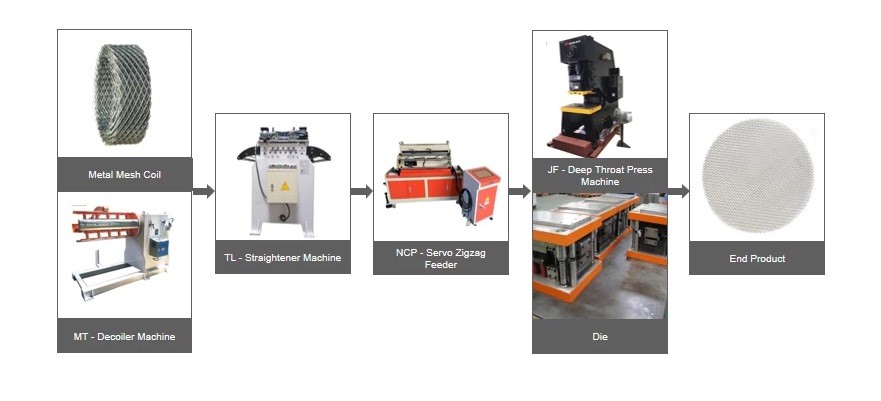

Metal stamping solution suggestion:
Decoiler + Straightener + feeder + Press
TL-300

TL straightener machine
exported to Thailand.





Metal stamping solution suggestion:
Decoiler + Straightener + feeder + Cutter
