RNC-300B Metal Steel NC Servo Feeder For automoation Stamping Line

RNC-300B Metal Steel NC Servo Feeder For automoation Stamping Line

RNC-300B Metal Steel NC Servo Feeder For automoation Stamping Line
RNC-300B Metal Steel NC Servo Feeder For automoation Stamping LineRNC-300B Metal Steel NC Servo Feeder For automoation Stamping LineRNC-300B Metal Steel NC Servo Feeder For automoation Stamping LineRNC-300B Metal Steel NC Servo Feeder For automoation Stamping LineRNC-300B Metal Steel NC Servo Feeder For automoation Stamping Line
CategoriesNC Servo Roll Feeder
AlbumView larger image
BrandHongEr
ModelRNC-300B
Functionautomatic metal coil feeder
Featureequipped with high speed press machine
Nameauto steel sheet servo feeds
Compactdecoiler and straightener
Usagemetal press and stamping line
Attributedrive with Yaskawa servo motor
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information
Product Description
RNC-300B Metal Steel NC Servo Feeder For automoation Stamping Line

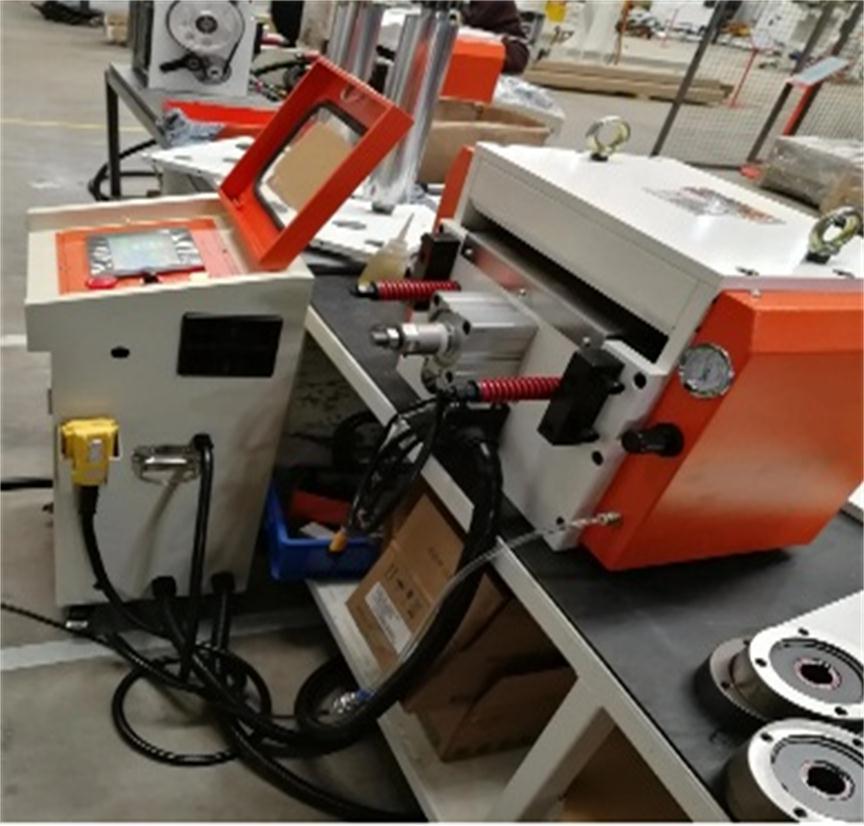

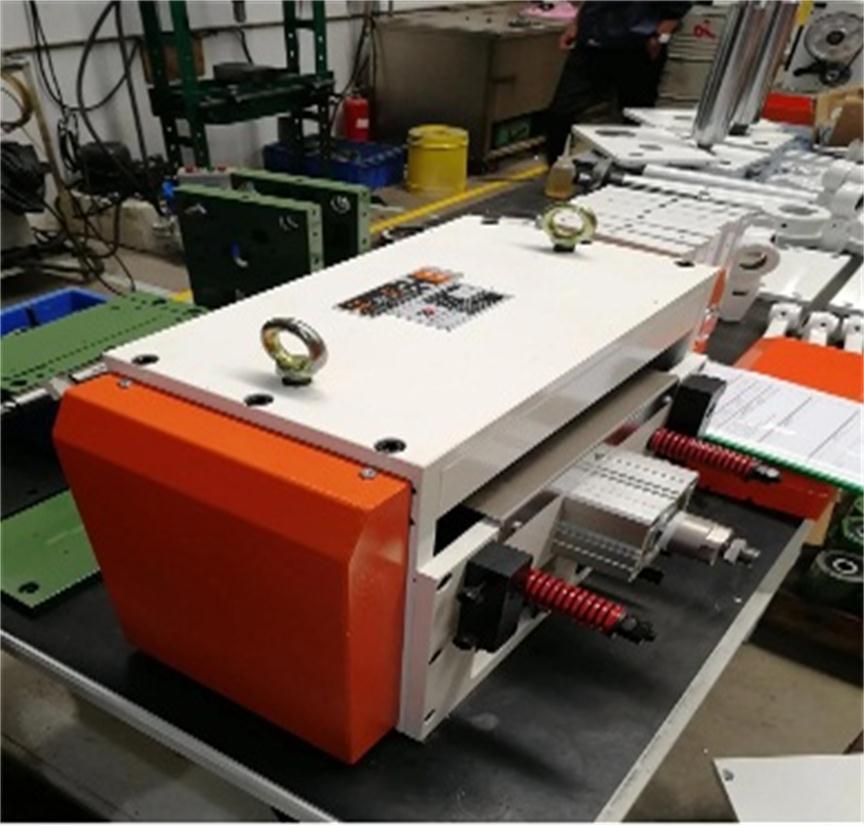

RNC-300B is HongEr servo roll feeder machine with pneumatic release.

It can feeds sheet metal coil material thickness from 0.5mm to 4.5mm, with max. feeding speed 20m/min.

Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

A mounting plate can help the servo feeder install to press machine easily.

Or you can choose a separate bracket for better stability.
Specification
Model
RNC-300B
Coil Width to
300 mm
Strip Thickness
0.5-4.5 mm
Release
Pneumatic Type Releasing System
Feed Roll
Upper Roll Ø75mm, Bottom Roll Ø90mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
1.3 Kw
Application
RNC-300B sheet metal coil feeder machine for press feeding can be found in many different product line such as oil filter productionsaw blade stamping lineknives pressing linecar plate stamping etc.

RNC-300B

RNC-300B metal sheet servo feeder
exported to Indonesia.


Metal stamping solution suggestion:
Decoiler + Straightener + RNC Servo Feeder + Press
RNC-300B

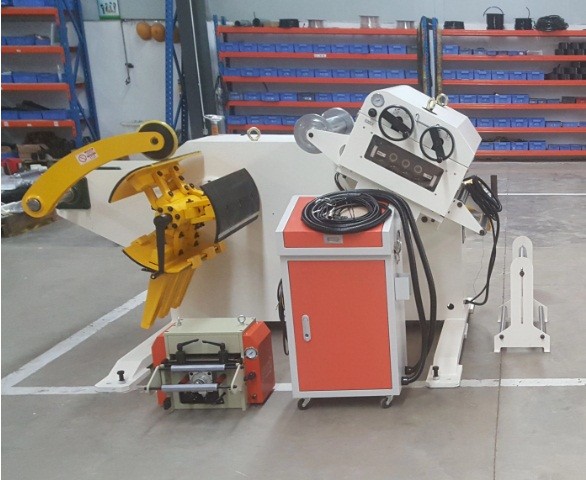

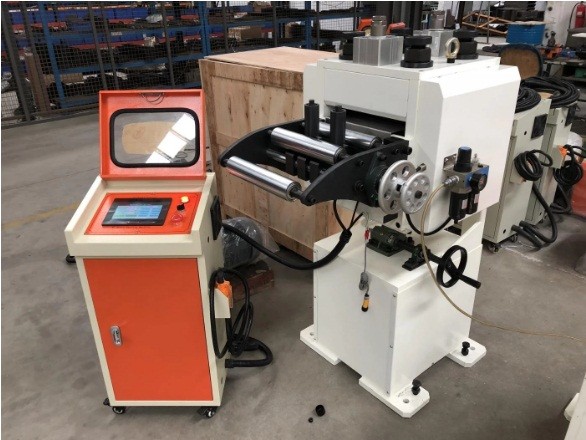

RNC-300B servo feeder compacted
with 2 in 1 decoiler and straightener maschine
exported to Mexico.



Metal stamping solution suggestion:
Decoiler & Straightener + RNC Servo Feeder + Press
