NCF-100 Metal Coil Servo Feeder For Metal Punching

NCF-100 Metal Coil Servo Feeder For Metal Punching

NCF-100 Metal Coil Servo Feeder For Metal Punching
NCF-100 Metal Coil Servo Feeder For Metal PunchingNCF-100 Metal Coil Servo Feeder For Metal PunchingNCF-100 Metal Coil Servo Feeder For Metal PunchingNCF-100 Metal Coil Servo Feeder For Metal PunchingNCF-100 Metal Coil Servo Feeder For Metal Punching
CategoriesMechanical NC Servo Roll Feeder
AlbumView larger image
BrandHongEr
ModelNCF-100
Functionautomatic metal coil feederwith mechanical release
Featureequipped with power press machine
Compactdecoiler and straightener for fast stampin
Nameauto steel sheet servo feeder
Usagefeeding for metal press and stamping line
Attributedrive with Yaskawa servo motor
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information
Product Description

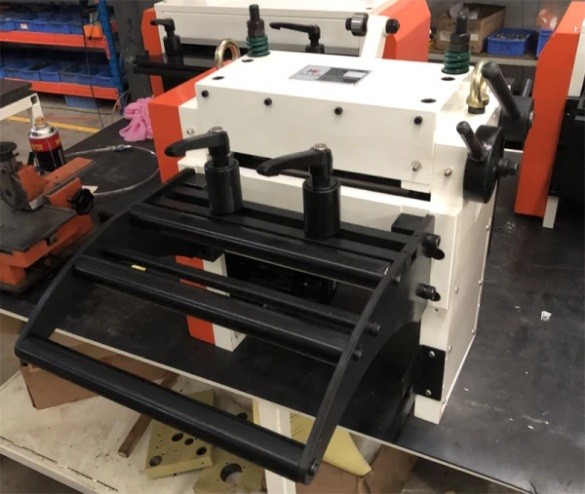

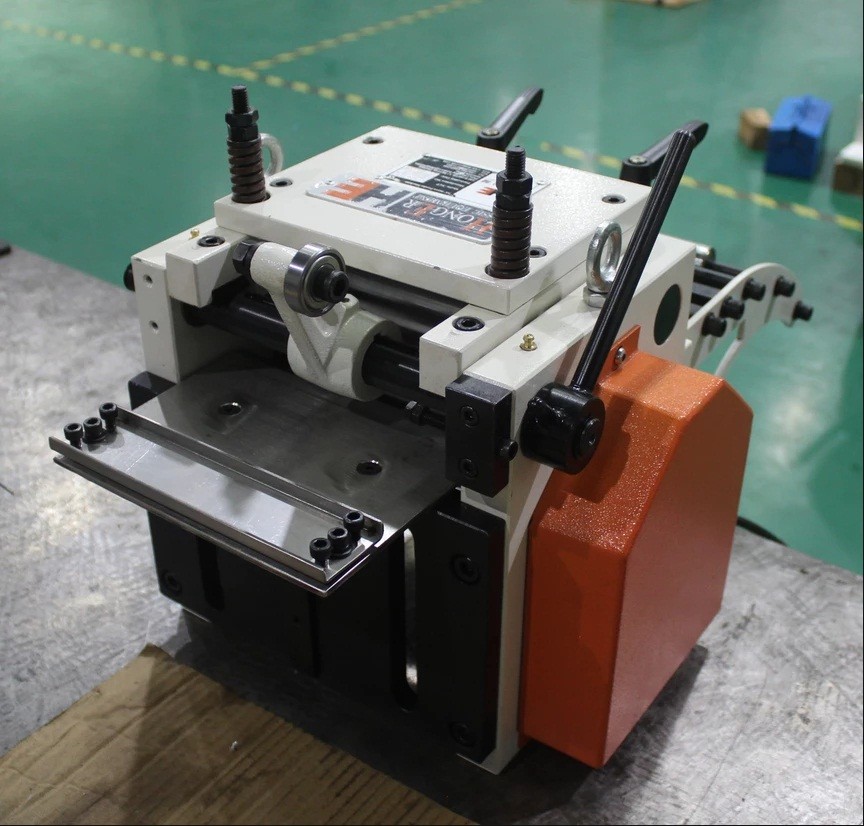

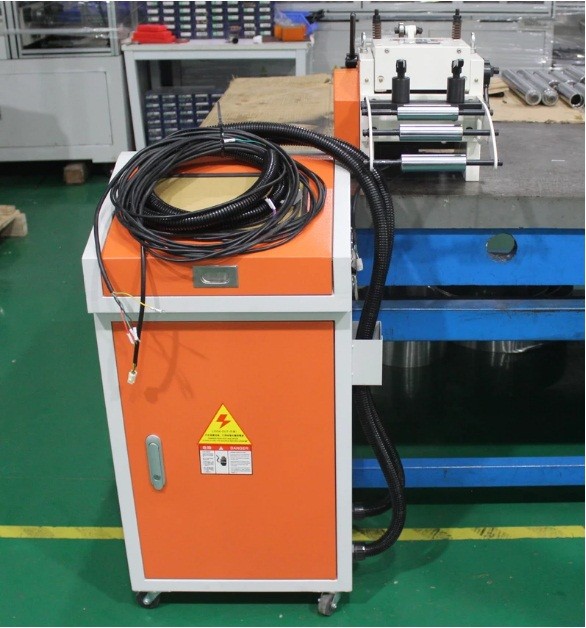

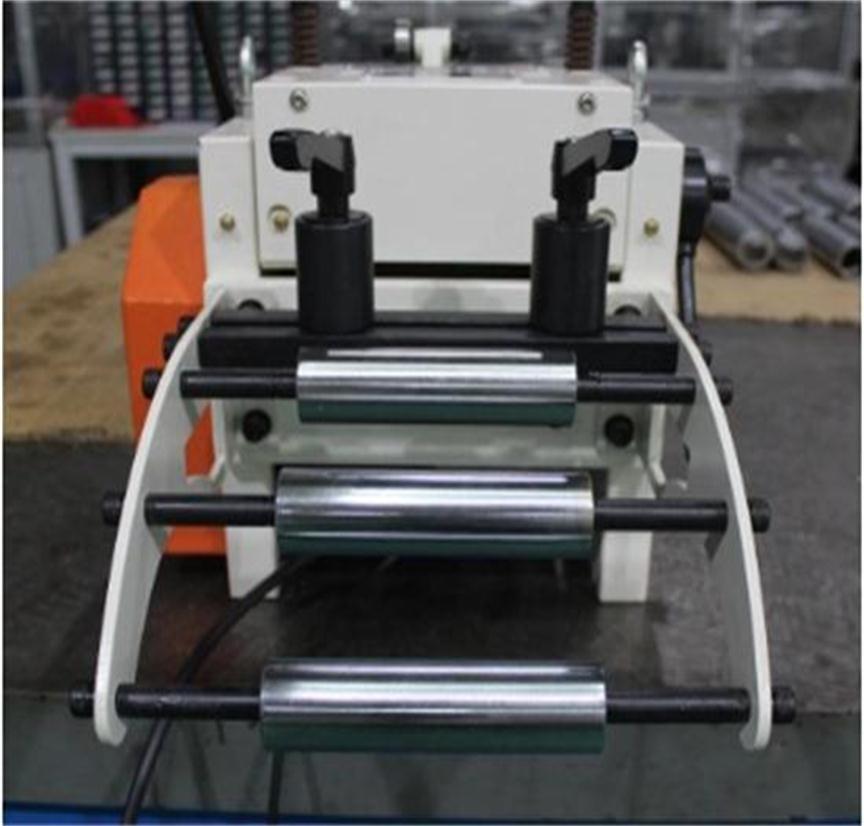

NCF-100 Metal Coil Servo Feeder For Metal Punching
NCF-100 automatic servo feeder works with mechanical release.

It can feeds sheet metal coil material thickness 0.1-1.6mm, with max. feeding speed 20m/min.

It can ensure +/-0.01mm feeding precision and often works with decoiler, straightener and press machine in the metal stamping line.
NCF-100 Metal Coil Servo Feeder Machine
1, Used for feeding the metal coil at thickness from 0.1mm to 1.6mm, with mechanical release.

2, Works for metal coil strip handling like steel, stainless steel, carbon steel, aluminum, copper, GI steel;

3, With Yaskawa servo system, ensure +/-0.1mm feeding precision;

4, Feeding speed max. 27m/min and suitable for high speed metal stamping.

5, Can be install to most kinds of press machine.
Specification
Model
NCF-100
NCF-200
NCF-300
NCF-400
Coil Width to
100 mm
200 mm
300 mm
400 mm
Strip Thickness
0.1-1.6 mm
Release
Mechanical Type Releasing System
Feed Roll
Upper Roll Ø65mm, Bottom Roll Ø80mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20 m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
0.85 Kw
0.85 Kw
1.3 Kw
1.8 Kw
Application

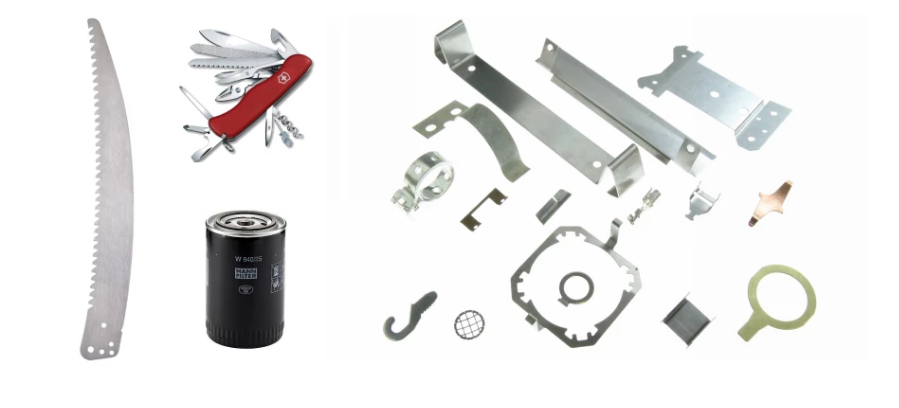

High speed servo feeder machine NCF-100 is often compacted with metal coil decoiler, straightener and press machine for metal stamping line. . It is wildly used in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.
NCF-100


NCF-100 metal sheet servo feeder
exported to Greece.





Metal stamping solution suggestion:
Decoiler + leveler + NCF Servo Feeder + Press

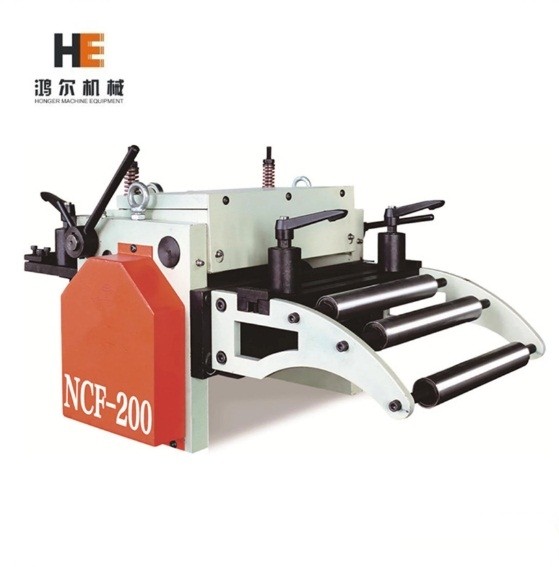

NCF-200

NCF-200 servo feeder compacted
with Decoiler and Straightener machine
exported to Indonesia.





Metal stamping solution suggestion:
Decoiler + Straightener + NCF Servo Feeder + Press
