RNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping Line

RNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping Line

RNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping Line
RNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping LineRNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping LineRNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping LineRNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping LineRNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping Line
CategoriesNC Servo Roll Feeder
AlbumView larger image
BrandHongEr
ModelRNC-600
Functionmetal strip roller servo feeder
Featurefor metal stamping line
Nameservo roller feeder machine
Compactpress machine for metal stamping
Usageautomatic feeding for metal coils
Attributewith international brand servo motor
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-20
Detail Information
Product Description

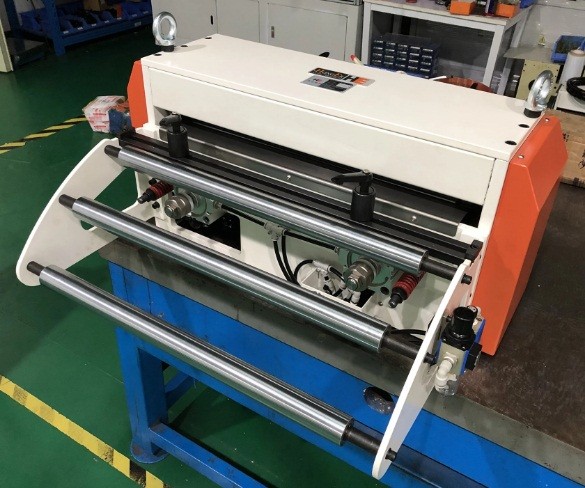

RNC-600 Metal Coil Strip Servo Roller Feeder For Press Machine For Stamping Line

RNC-600 servo feeder is one type of HongEr SERVO FEEDER with pneumatic release.

It can feed sheet metal coil material thickness 0.2-3.2 mm, width 600 mm, with max. feeding speed at 20m/min.

Using Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

The raw material of the feeding rollers of RNC is GCr15, rollers surface finish adopts electroplated hard-chrome, surface hardness reaches HRC60±2.

It has 10 sections adjustment, and the feeding length/pitch is adjustable.
Specification
Model
RNC-600
Coil Width to
500 mm
Strip Thickness
0.2-3.2 mm
Release
Pneumatic Type Releasing System
Feed Roll
Upper Roll Ø65mm, Bottom Roll Ø80mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
2.9 Kw
Application
RNC-600 High precision servo feeder for press feeding metal stamping applications:

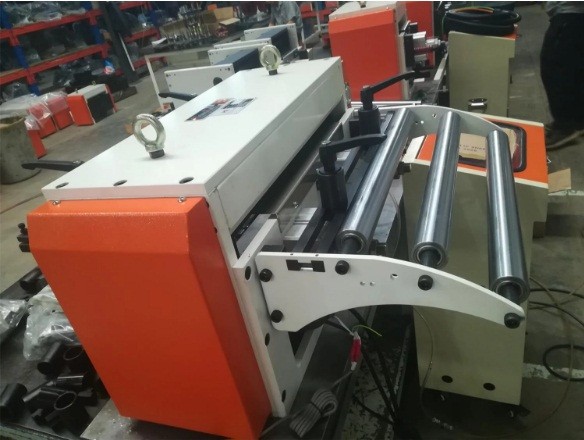

RNC-600

RNC-600 pneumatic servo feeder
exported to Poland.





Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press

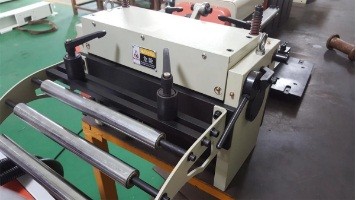

RNC-600

RNC-600 pneumatic servo coil feeder
exported to Thailand.




Metal stamping solution suggestion:
Decoiler & Straightener + NC servo feeder + Press
