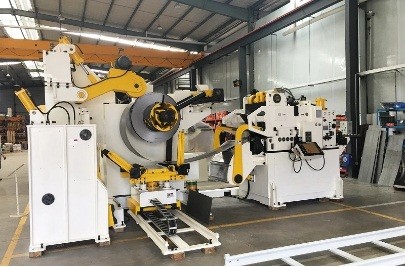

GLK4-800 Decoiler Straightener Feeder 3 In 1 Machine For Brake Pads Stamping In Press Room

Capacities:

Coil width: 70mm-800mm

Material thickness: 0.6mm-6.0mm

Coil weight: 7T

Line speed: 20m/min

Line length: 5m

Material: CR Steel, HR Steel, Galvanized Steel etc.
1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverte
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Electrical Circuitry Control
Precision electric adjustment
10. Shearing Unit
Hydraulic shear
11. Optional Lubrication Unit
Automatic lubrication control, 20L
10. Outlet Support Bracket
Adjustable in length
Specification
Model
GLK4-800
Yield Strength
≤245
Tensile Strength
≤392
Coil Width
70-800 mm
Strip Thickness
0.6-6.0 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
7000 kgs
Feeding Speed
16-24 m/min
Feed Precision
±0.15mm
Straighten Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Auxiliary Rolls
Φ68mm * 220mm *3 groups
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
3.7 Kw
Servo Motor
7.5 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series

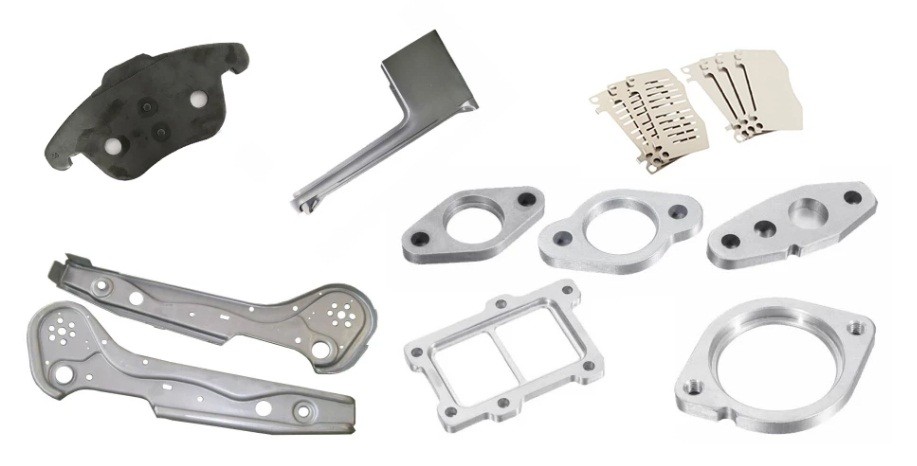

Application
High strength automotive parts: Brake pad, Tie bar, Damper etc.
High strength hardware parts

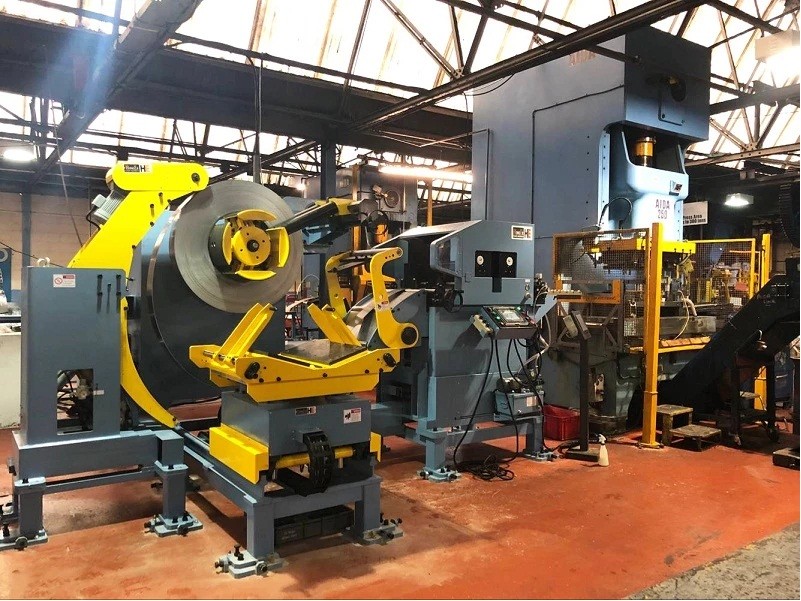

Decoiler straightener feeder 3 in 1 machine GLK4-600 with AIDA press in UK customer's workshop

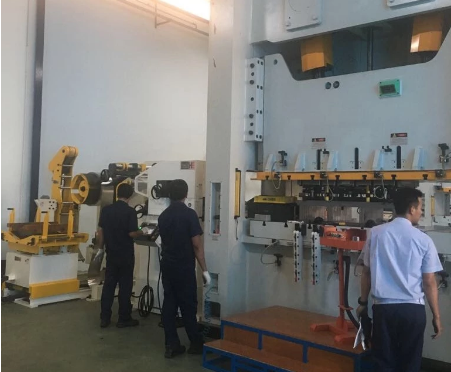

3-in-1 servo straightener feeder with uncoiler machine for printer accessories production line

This is one of our customer in Indonesia

They produce printer accessories with HONG-ER coil feeding line.

Model: GLK4-600
Combined uncoiling straightening feeding unit

Standard specification, suitable for coil width max. 600mm, material thickness from 0.6-6.0mm.

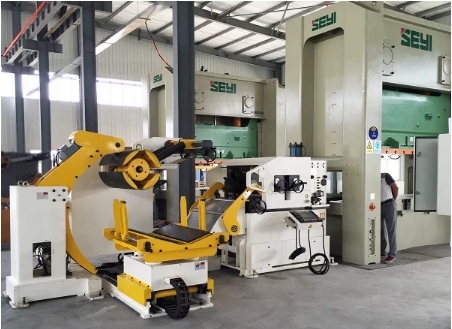

Servo feeding line for SEYI Press, combined decoiler, straightener, feeder with oiling unit

This is one of our customer in Malaysia.

They produce sheet metal parts with HONG-ER coil feeding line and SEYI press machine.

Model: GLK4-600, Combined uncoiling levelling feeding shearing unit.

Suitable for coil width max. 600mm, material thickness from 0.6-6.0mm.
