GLK3-400 3 in 1 Unit Feeder for Metal Coil Pressing In Automation Feeding System

Capacities

Coil width: 40mm-400mm

Material thickness: 0.5mm-4.5mm

Coil weight: 3000kgs

Line speed: 20m/min

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.
1. Coil Car
Hydraulic power, wear-resisting surface
1. Coil Car
Hydraulic power, wear-resisting surface
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Handwheel
Precision straightening value adjustment
10. Outlet Support Bracket
Adjustable in length
11. Optional Lubrication Unit
Automatic lubrication control, 20L
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK3-400
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width
70-400 mm
Strip Thickness
0.5-4.5 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
3000 kgs
Feeding Speed
Max. 20m/min
Feeding Precision
±0.1mm
Straightener Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
1.5 Kw
Servo Motor
4.4 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series

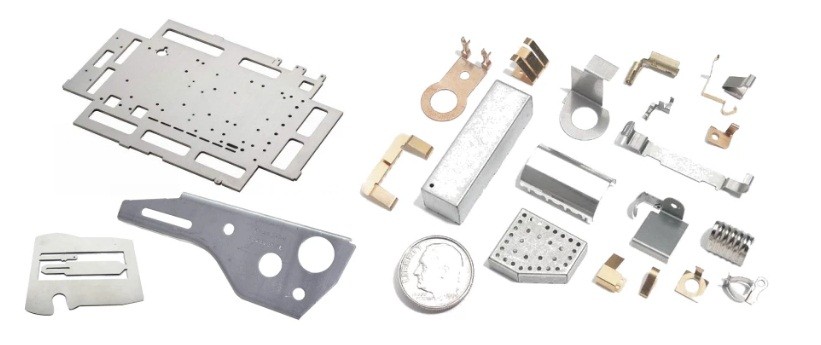

Application
Electronic components, Electrical accessories, Household appliance, Hardware tools

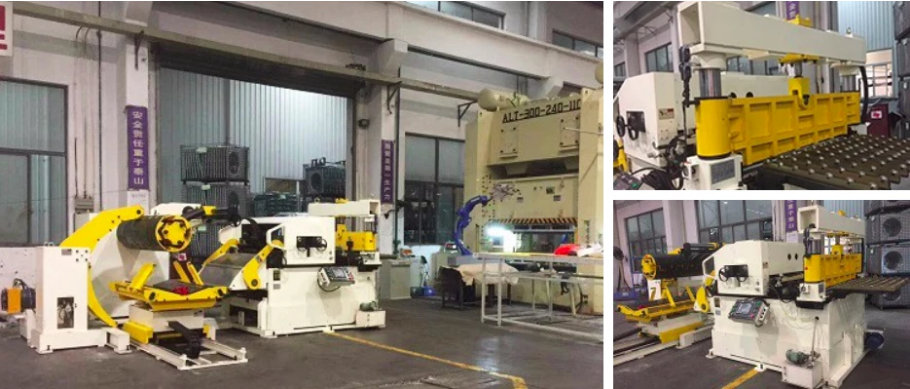

GLK3-1300 for air conditioner parts manufacturing

Equipped with hydraulic shearing machine and automatic oiling machine
