GLK4-400D Double Head Coil Feeder 3 In 1 Machine For Automobile Stamping Manufacturer
Decoiler part:
1, Pressing arm: with pneumatic power. Especially the PU pressing roller is with motor drive.
2, Limited arm: by hand wheel control. Electrical adjustment is optional.

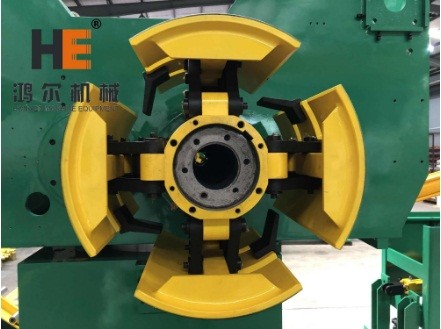

3, Decoiler mandrel: hydraulic expansion.
4, Brake system: Pneumatic disk brake with frequency inverter to protect motor.
5, Double head of decoiler: each side with 5000kg capacity for metal coil

Straightener and feeder part:
1, Inlet feeding arm: clamp the metal coil head and feeding it into straightener (leveler) smoothly.
2, Control display screen: operate the coil feeder machine with electrical control.
3, Straightener: straightener rollers are adjusted by worm and gear. Electrical adjustment is optional if needed. All rollers are made from bearing steel with heat treatment and electroplated chrom achieve to hardness HRC 60-62. Meanwhile, all rollers are have concentricity testing with +/-0.05mm accuracy so as to make high straightening performance.
4, Drive system: striaghtener and feeder shared with Yaskawa servo motor with high precision +/-0.15mm.
5, Outlet: outlet for strip feeding out.

Optional device:
1, Lubrication device: protect the progressive tool
2, Hydraulic shearing: cut the coil head

Standard stamping line:
Double head coil feeder 3 in 1 machine + Mechanical press machine+ progressive tool
Application

Model
GLK4-400D
GLK4-500D
GLK4-600D
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil width(mm)
70-400mm
70-500mm
70-600mm
Coil thickness
0.6-6.0mm
Coil weight
5000kg
5000kg
5000kg
Coil I.D.(mm)
480-520mm
Coil O.D.(mm)
1500mm
Max. speed
16-24 m/min
Feeding accuracy
+/- 0.15 mm
Straightener rollers
4 rollers on top
3 rollers on bottom
Power
380V 60HZ
Expansion
Hydraulic
Pressing arm
Pneumatic Type
Application

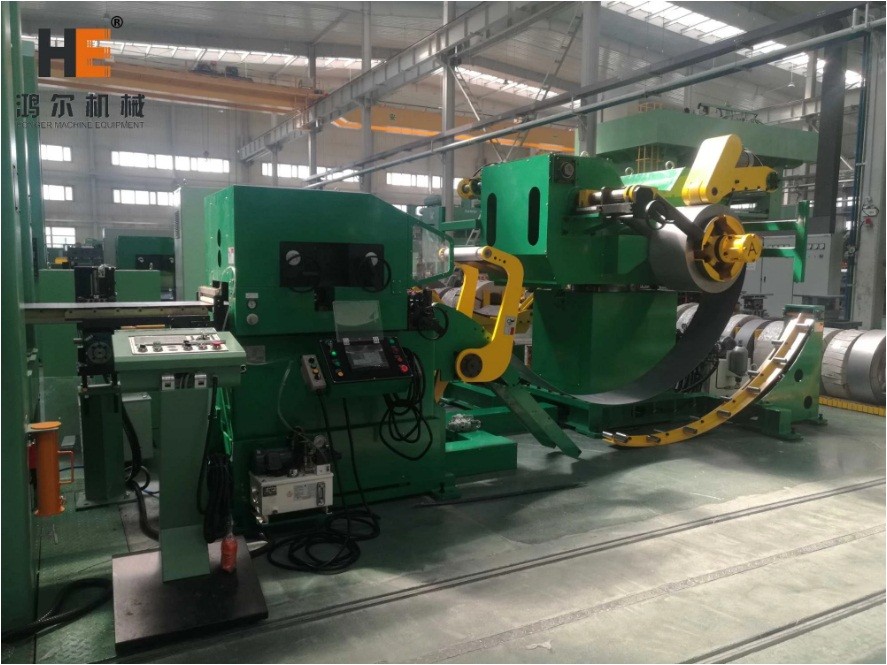

GLK4-400D automation coil feeding line

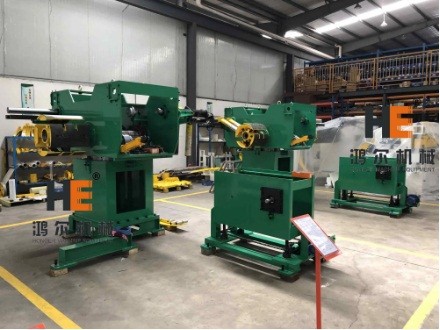

GLK4-400D uncoiler straightener feeder machine with double coil head to save time of loading which is suitable for auto parts stamping line.


This 3 in 1 auto coil feeder machine can be equipped with press machine, cutting, shearing.
