GLK3-1300 UCoil Feeder Machine Compact Press Punching For Cover Of Air Conditional

Capacities

Coil width from 70mm to 1300mm


Material thickness from 0.5mm to 4.5mm


Coil weights up to 10Tons


Line speed can reach 20m/min


Feeding Length: Max. 9999.99mm


Feeding Precision±0.1mm


Suitable for CRS, HRS, stainless, aluminum, copper etc.

1. Coil Car
Hydraulic power, wear-resisting surface
1. Coil Car
Hydraulic power, wear-resisting surface
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Handwheel
Precision straightening value adjustment
10. Outlet Support Bracket
Adjustable in length
11. Optional Lubrication Unit
Automatic lubrication control, 20L
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK3-1300
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width
70-1300 mm
Strip Thickness
0.5-4.5 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
10, 000 kgs
Feeding Speed
Max. 20m/min
Feeding Precision
±0.1mm
Straightener Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
5.5 Kw
Servo Motor
7.5 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application
GLK3-1300 is suitable for large capacity of metal coil handling. It works for max 1300mm width coil sheet with 0.3-4.5mm thickness. It can be compact with mechanical press for blanking, punching, metal forming, deep drawings, etc. It is widely used for automotive stamping line or for electric application.
GLK3-1300

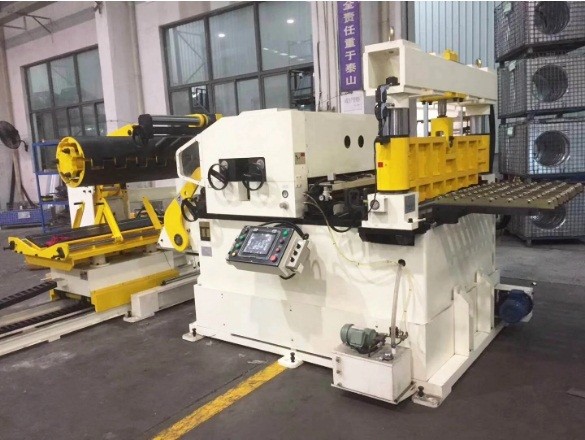

GLK3-1300 coil feeder equipped with hydraulic shearing with press machine for cover blanking line

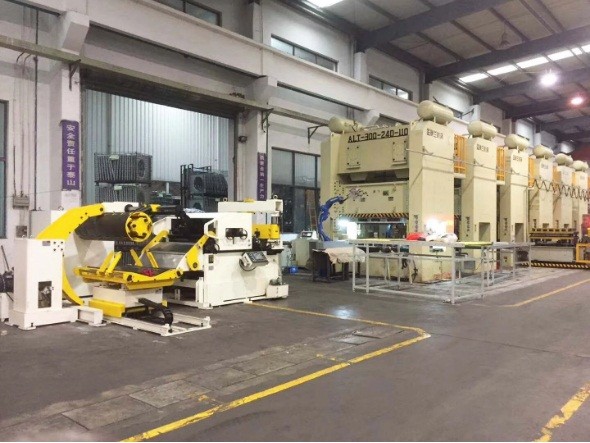

Metal stamping solution suggestion:
3 in 1 unit coil servo feeder + press machin
