GL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press Machine

GL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press Machine

GL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press Machine
GL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press MachineGL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press MachineGL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press MachineGL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press MachineGL-500 2 In 1 Decoiler Straightener Combo Machine Working With Coil Feeder And Press Machine
CategoriesCombined Decoiler Straightener GL
AlbumView larger image
BrandHongEr
ModelGL-500
Functionuncoiler straightener combo machine
Featureautomatic uncoiling and straightening
Nameunwinder and leveler compact machine
Compactmetal coil servo coil feeder machine
Usagedereeler and straightener combo in press room
attributeby inverter controlled with press arm
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
Product Description
GL-500 Decoiler Straightener Combo Machine For Metal Stamping Line

GL Combined Decoiler Straightener is used in metal stamping operation for decoiling and straightening sheet metal coil from thickness 0.3mm to 3.5mm.

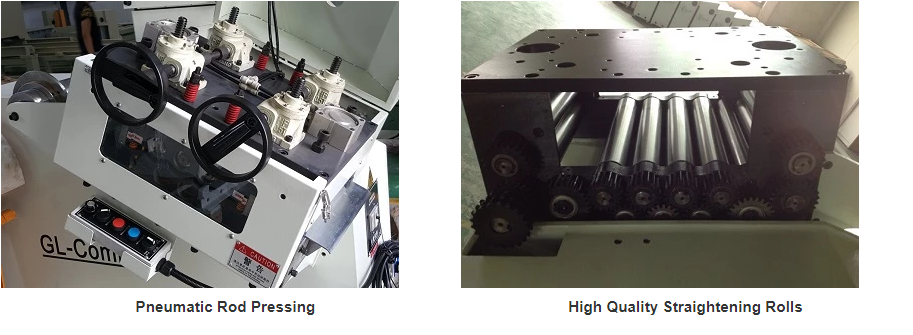

With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve precision straightening performance for many different kind of material.

The combined structure guarantee a synchronization between decoiler and straightener and save work space.
Specification
Model
GL-500
Max. Coil Width
500 mm
Strip Thickness
0.3-3.5 mm
Coil I.D.
460-520 mm
Coil O.D.
1200 mm
Loading Capacity
2000 kgs
Expansion
Manual
Straightener Roll
Ø48mm*7pcs
Uncoiler Motor
No
Straightener Motor
3 HP
Roller Pressing
Pneumatic Rod
Roller Adjustment
Eccentric turbine worm adjusting
Inverter
Delta, Taiwan
Feeding Speed
15m/min
Pressing Arm
Optional
Application

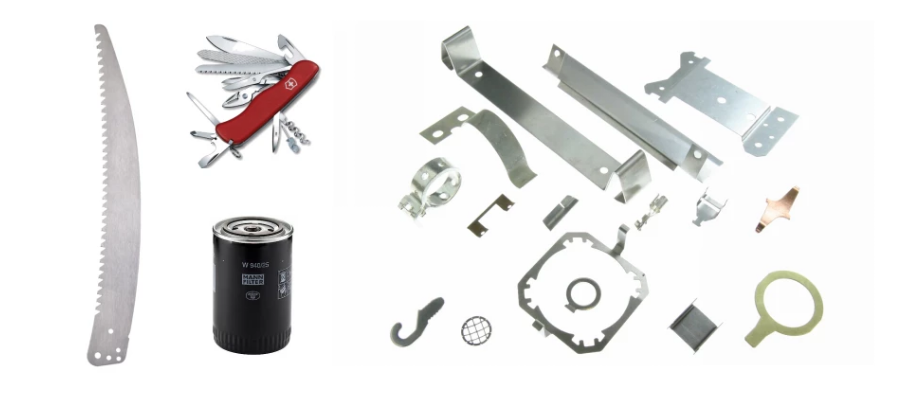

GL combined decoiler straightener can be found in many different product line such as oil filter productionsaw blade stamping lineknives pressing linecar plate stamping etc.

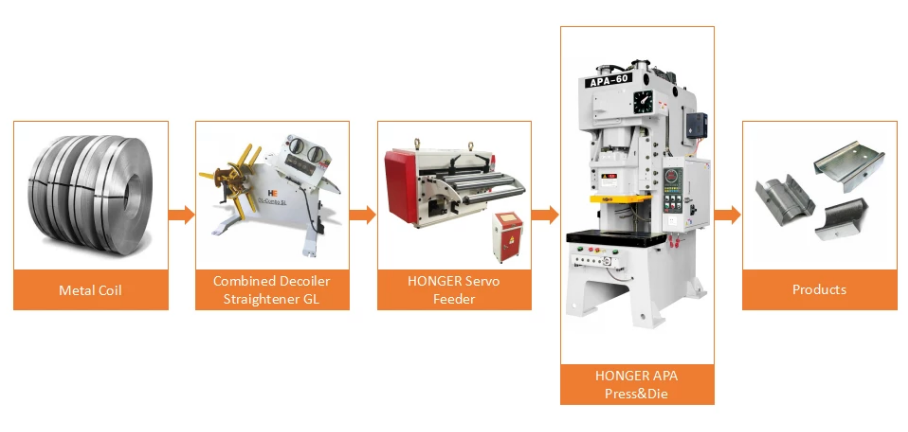

A general configuration for sheet metal parts stamping line:

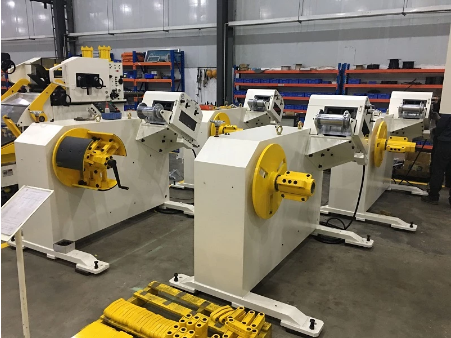

4pcs of GL-200 combined decoiler straightener to Poland
