MT-300F Uncoiler Machine For Heavy Metal Coil Capacity With Pneumatic Pressing Arm
Description
MT-F decoiler machine
Usage:
1, Suits for sheet metal coil in thickness from 0.2mm to 3.2mm;
2, Used in metal stamping line or cutting line;
3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;

Features:
1, The mandrel is blackening to prevent oxidation and can load heavy metal sheet coil;
2, The expansion way is hydraulic;
3, The pressing arm is pneumatic type;
4, Coir car is optional;
5, With Delta inverter to control speed;
6, The frame body is subject to sand blasting so as to remove the dust and weld spot and increase the adhesive of painting.
specification
Model
MT-500F
Coil width(mm)
500mm
Coil thickness(mm)
0.1-3.2mm
Coil I.D.(mm)
480-530mm
Coil O.D.(mm)
1200mm
Meterial weight(kg)
3000kg
Expansion
Hydraulic
Pressing arm
Pneumatic Type
Inverter
Delta, Taiwan
Application
Decoiler machine for heavy metal coils handling is uncoiling automatically. It is suitable for thicker metal sheet and can compact straightener feeder machine in metal stamping line.

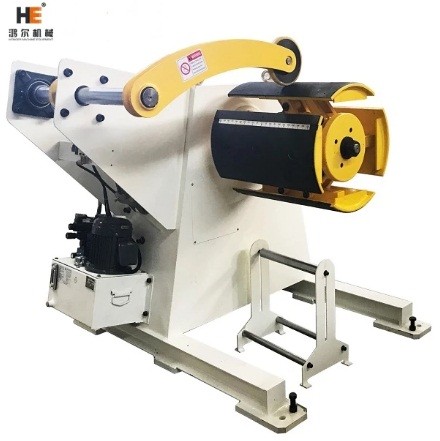

MT-300F uncoiler machine

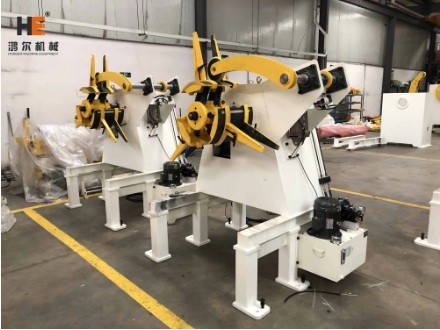

MT-F automatic decoiler machine with pressing arm

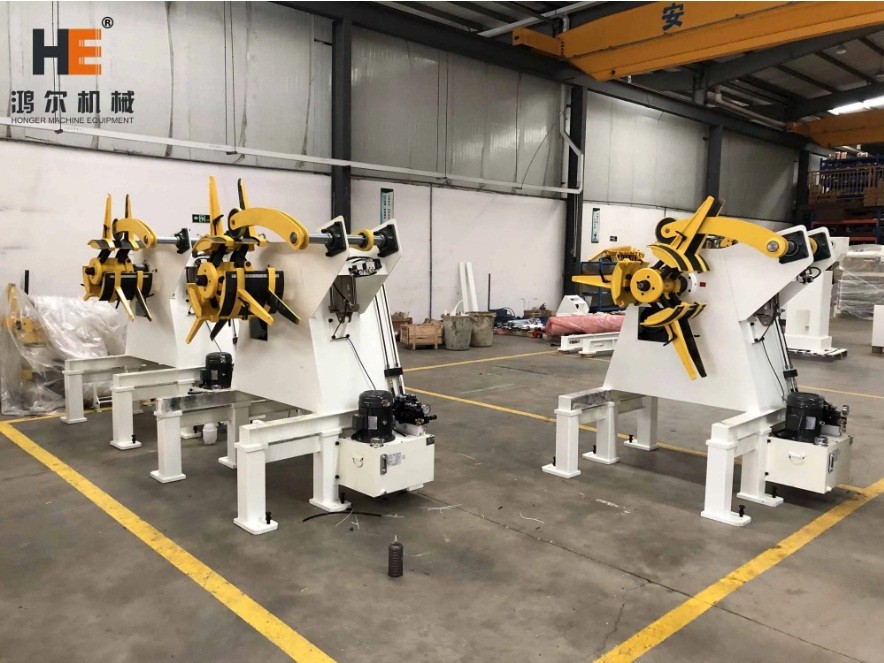

exported to Germany


Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
