TL-200 Metal Sheet Straightener Machine For Leveling Line

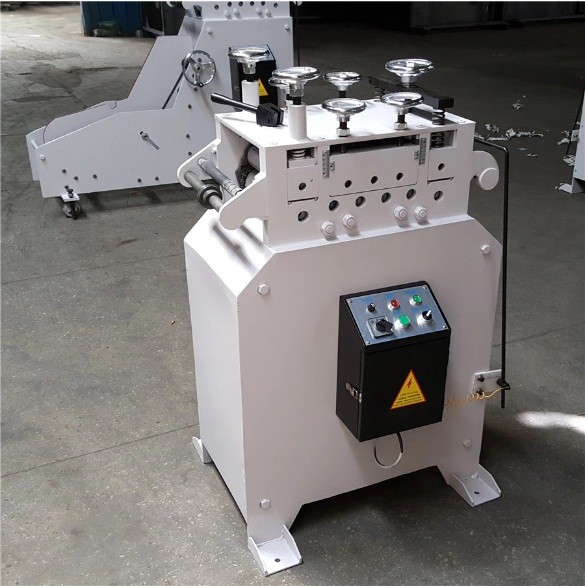

TL-200 Metal Sheet Straightener Machine

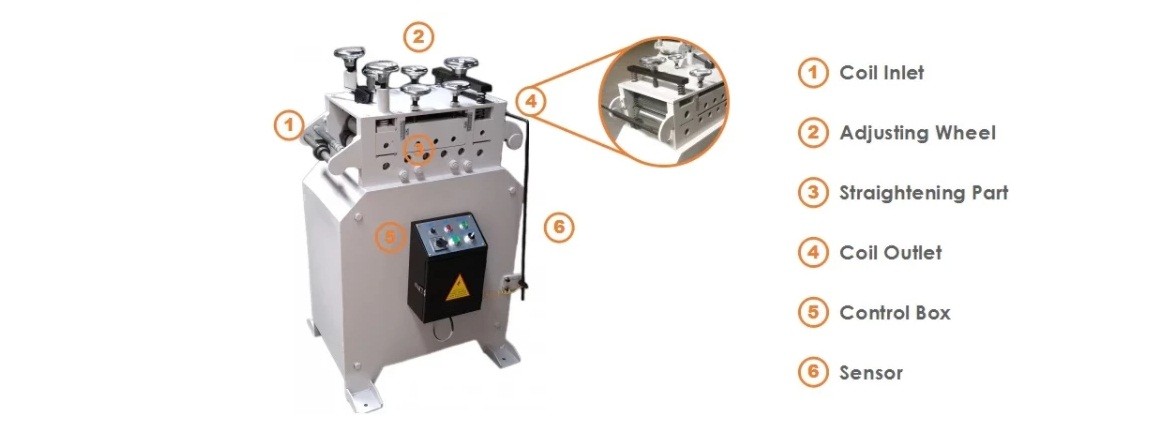

1, Suitable for leveling sheet metal coil with thickness from 0.4mm to 2.2mm;

2, The straightener rollers are 50mm diameter with 7pcs;

3, The straightener rollers are adjusted by hand wheel;

4, The straightener rollers are electroplated with chrome and with HRC +/-60;

5, The pinch rollers are frosted so as to prevent the strip from slip.

6, OEM & ODM is available.
Specification
Model
TL-200
TL-300
TL-400
TL-500
TL-600
Coil width(mm)
200mm
300mm
400mm
500mm
600mm
Coil thickness(mm)
0.4-2.2mm
Speed(m/min)
16
Pinching roller
(diameter*pcs)
60mm*2pcs
80mm*2pcs
Straightener roller
(diameter*pcs)
50mm*7pcs
Motor
1HP
1HP
2HP
2HP
3HP
Application
TL-200 metal sheet straightener machine is used for leveling the metal coil sheet or plate within thickness 0.4-2.2mm, width 200mm. It often works with metal coil uncoiler and feeder machine for press in a metal stamping line or with cutter in metal cutting line.
It Works for metal material like steel, stainless steel, carbon steel, aluminum, copper, GI steel.

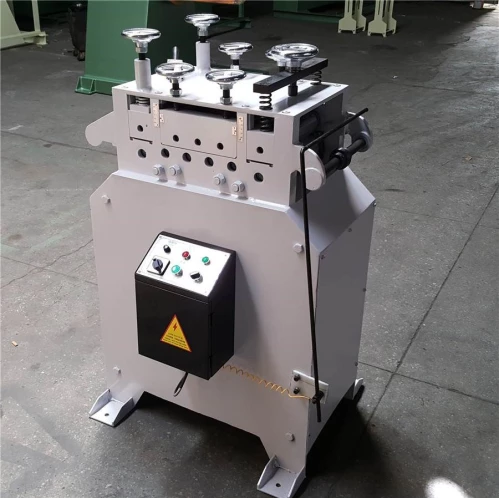

TL-200

TL straightener machine
exported to Thailand.

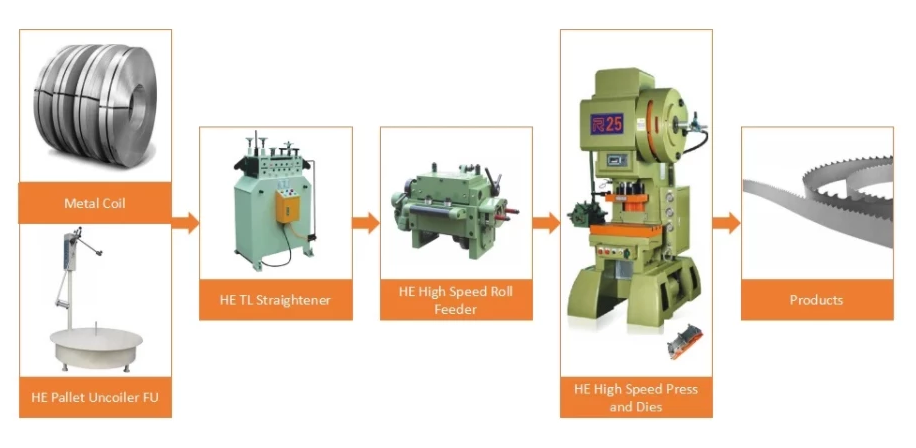

Metal stamping solution suggestion:
Decoiler + Straightener + feeder + Press

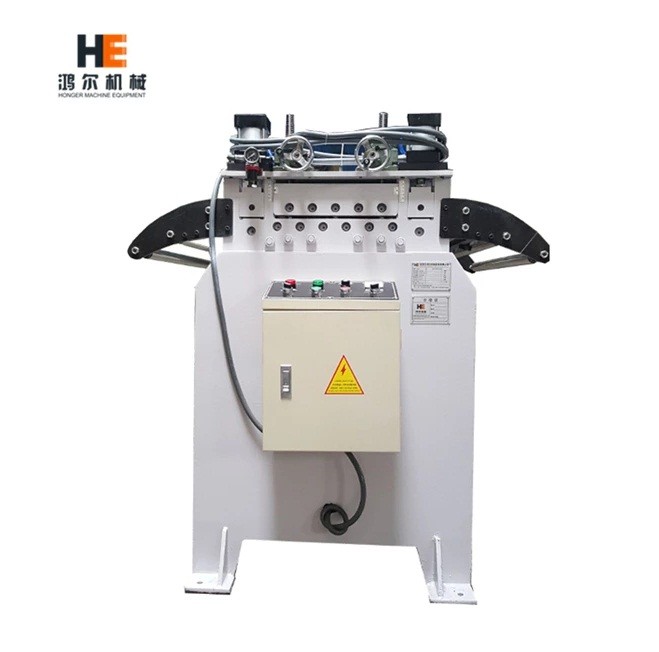

TL-200

TL straightener machine
exported to Malaysia.





Metal stamping solution suggestion:
Decoiler + Straightener + feeder + Cutter
