GLK2-500 3 In 1 Servo Feeder Machine With Mechanical Press For Heatsink Stamping Line
Capacities
Coil width: 50mm-500mm

Material thickness: 0.3mm-3.2mm

Coil weight: 3Ton

Line speed: 20m/min

Line length: 3.2m

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.
1. Coil Car
Hydraulic power, wear-resisting surface
1. Coil Car
Hydraulic power, wear-resisting surface
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Handwheel
Precision straightening value adjustment
10. Outlet Support Bracket
Adjustable in length
11. Optional Lubrication Unit
Automatic lubrication control, 20L
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK2-500
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width
50-500 mm
Strip Thickness
0.3-3.2 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ480-Φ520
Coil O.D.
Φ1200
Loading Capacity
3000 kgs
Feeding Speed
Max. 20m/min
Feeding Precision
±0.1mm
Straightener Rolls
Φ48mm * 11pcs
Pinch Rolls
Φ68mm * 2pcs
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
1.5 Kw
Servo Motor
2.9 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application
Electronic components, Electrical accessories, Household appliance, Hardware tools

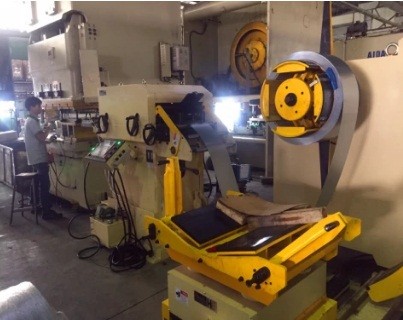

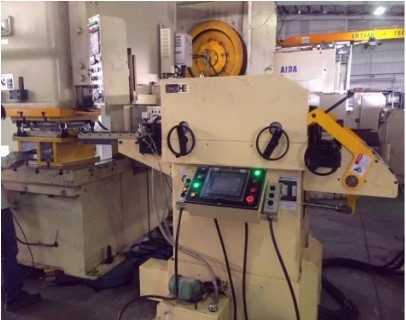

GLK2-500F, HongEr coil feeding system with AIDA press machine in Vietnam:

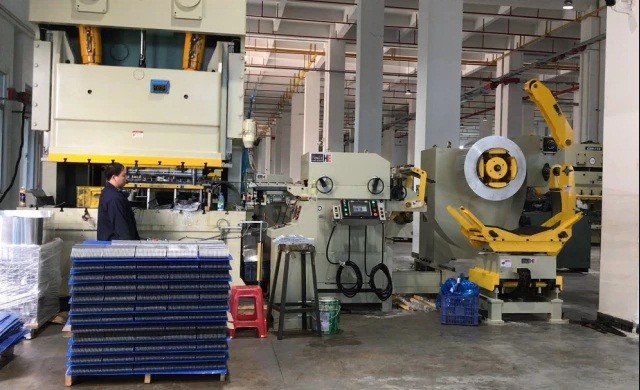

GLK2-500 for LED sheet metal parts manufacturing
Save Workspace!
