APA-110 High Precision Gap Press Machine For Metal

APA-110 High Precision Gap Press Machine For Metal

APA-110 High Precision Gap Press Machine For Metal
APA-110 High Precision Gap Press Machine For MetalAPA-110 High Precision Gap Press Machine For MetalAPA-110 High Precision Gap Press Machine For MetalAPA-110 High Precision Gap Press Machine For MetalAPA-110 High Precision Gap Press Machine For Metal
CategoriesPrecision Gap Frame Power Press
AlbumView larger image
BrandHongEr
ModelAPA-110
Functionhigh accuracy gap press machine
Featurecompactcompact coil feeder for press machine
NameAPA press machine for metal stamping
Compactautomatic servo coil feeder machine
Usagemetal sheet stamping equipment
Attributeautomatic punching for metal coils
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
APA-110 High Precision Gap Press Machine For Steel Parts Stamping
APA high precision press machine is structured by rigid frame with less deflection. It works with hight accuracy to ensure high quality products. The APA gap press machine is safe and reliable for operation, and widly used for the metal parts stamping.

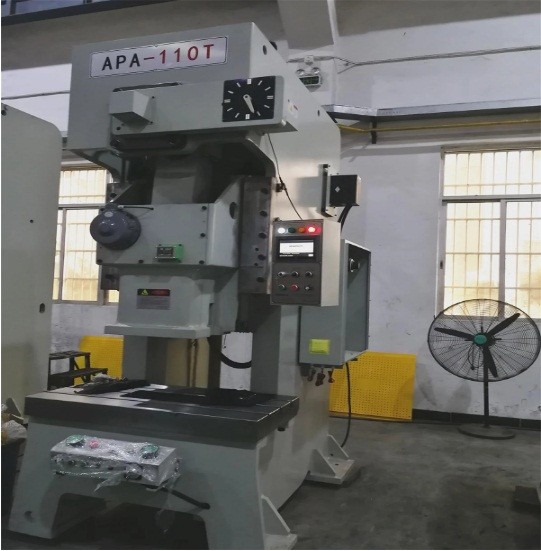

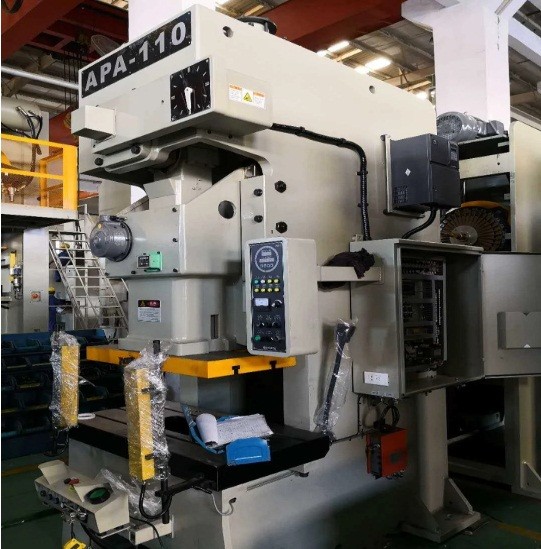

Photo Show
Description

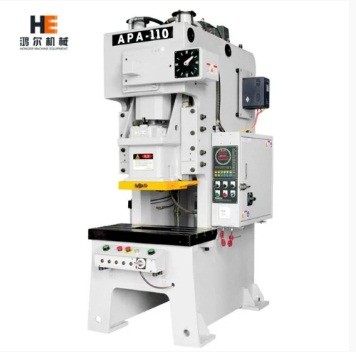

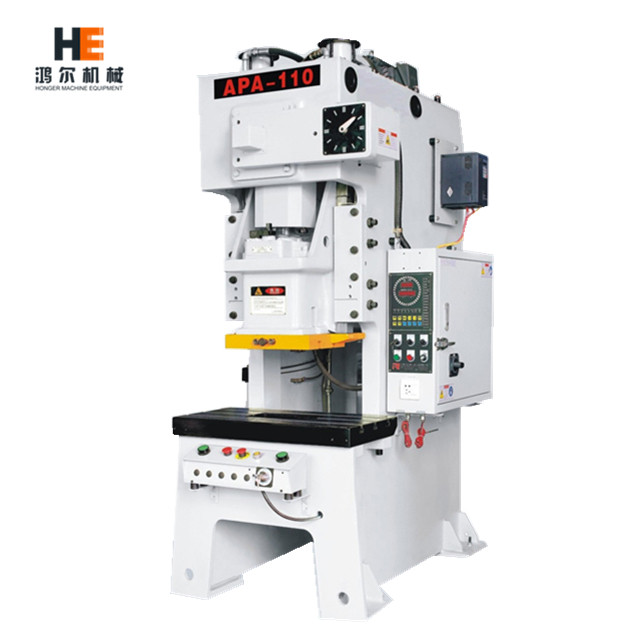

APA-110 High Precision Gap Press Machine

APA-110 high precision press machine is equipped with decoiler straightener and servo coil feeder machine for metal coils handling. Or compacted with transfer arm for metal strips.


 precision of mold adjusting up to 0.1mm, safety, reliable and convenient.


Crank,gear,connect bar are oxidized hardening and milled ,having super comprehensive mechanical performance and durable function.

Specification
Model
APA-15
APA-25
APA-35
APA-45
Type
V
V
H
S
V
H
V
H
Capacity
15Ton
25Ton
35Ton
45Ton
Rated tonnage point
1mm
3.2mm
1.6mm
3.2mm
3.2mm
1.6mm
3.2mm
1.6mm
Speed changing
120-180SPM
60-140SPM
130-200SPM
60-120SPM
40-120SPM
110-180SPM
40-100SPM
110-150SPM
Stable speed
130SPM
110SPM
110SPM
85SPM
75SPM
Stroke
60mm
70mm
30mm
80mm
70mm
40mm
80mm
50mm
Closed die height
200mm
195mm
215mm
195mm
220mm
235mm
250mm
265mm
Bolster area(mm)
680*300*70
680*300*70
680*300*70
680*300*65
800*400*70
850*440*80
Slide area(mm)
300*230*50
300*230*50
360*250*50
400*300*60
Slide adjustment
50mm
50mm
55mm
60mm
Shank hole
Φ38.1 mm
Main power
VS2.2*6
VS3.7*4
VS3.7*4
VS5.5*4
Slide adjust
Manual operation
Electrical driving
Air pressure
6kg/cm2
Press precision
GB/JIS 1class
Press dimension
 1236*820*  1920mm
1280*850*2200
1380*900*2400mm
1600*950*2500mm
Gross weight
1.8Ton
2.1Ton
3Ton
3.8Ton
Model
APA-60
APA-80
APA-110
APA-160
Type
V
H
V
H
V
H
V
H
Capacity
60Ton
80Ton
110Ton
160Ton
Rated tonnage point
4mm
2mm
4mm
2mm
6mm
3mm
6mm
3mm
Speed changing
35-90SPM
80-120SPM
30-80SPM
80-120SPM
30-60SPM
60-90SPM
20-50SPM
40-70SPM
Stable speed
65SPM
50SPM
35SPM
Stroke
120mm
60mm
150mm
70mm
180mm
80mm
200mm
90mm
Closed die height
310mm
340mm
340mm
380mm
360mm
410mm
460mm
510mm
Slide area
500*360*70mm
560*420*70mm
650*470*80mm
700*550*90mm
Bloster area
900*500*80mm
1000*550*90mm
1150*600*110mm
1250*800*140mm
Slide adjustment
75mm
80mm
100mm
Shank hole
Φ50 mm
Φ65 mm
Main power
VS5.5*4
VS7.5*4
VS11*4
VS15*4
Slide adjust
Electrical driving
Air pressure
6kg/cm2
Press precision
GB/JIS 1class
Press dimension
1600*1000*2800mm
1800*1180*2800mm
1900*1300*3200mm
2300*1400*3800mm
Gross weight
5.6Ton
6.5Ton
9.6Ton
16Ton
Application
APA-110 gap frame press machine with reasonable structural design is convenient for automatic production and line production. Used reliable high intensity clutch/brake and twin eletromagnetic valve, overloading protector can guarantee safe production all-around.


It is equipped with decoiler straightener and servo coil feeder machine for metal coils handling. Or compacted with transfer arm for metal strips.
Case Show

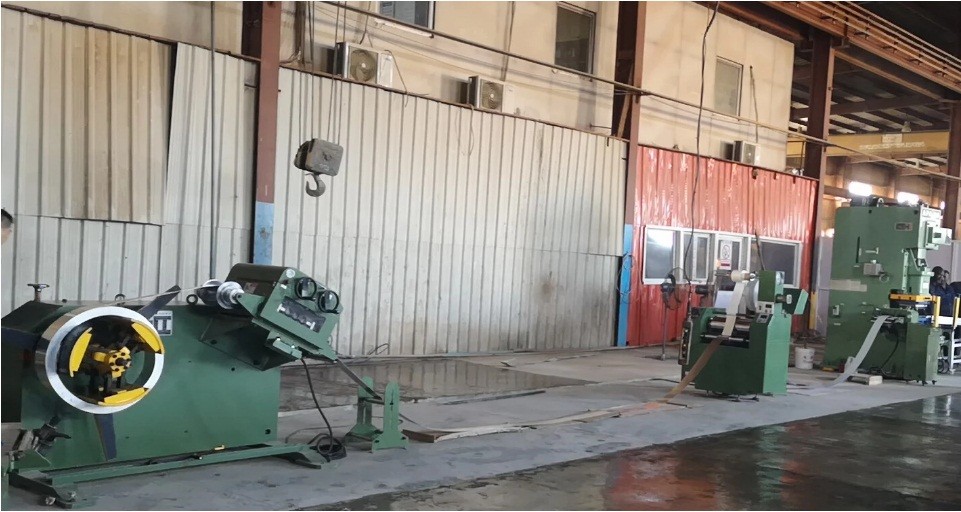

2 in 1 decoiler and straightener combo machine + servo coil feeder + APA-110 press machine exported to Sudan.

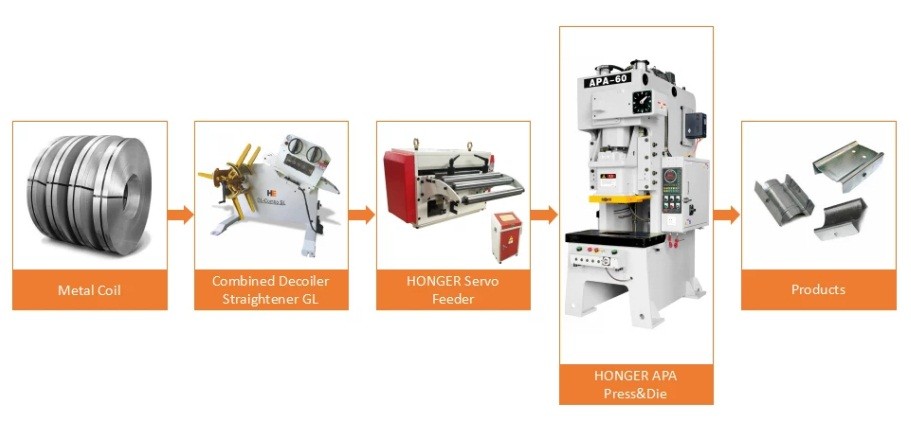

Stamping Line Solution
Package & Delivery

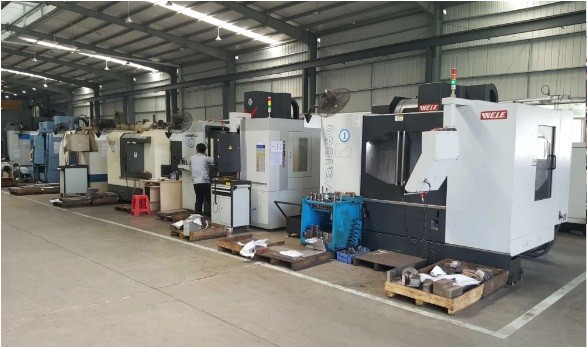

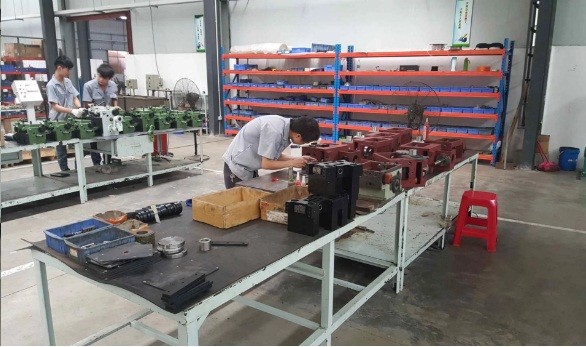

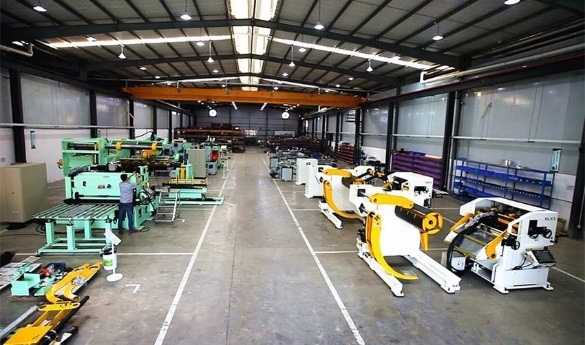

HongEr Factory
