GLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press Room

GLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press Room

GLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press Room
GLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press RoomGLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press RoomGLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press RoomGLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press RoomGLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press Room
CategoriesGLK-H High Strength Material Coil Handling Systems
AlbumView larger image
BrandHongEr
ModelGLK4-1300H
Applied industryPrecision stamping parts, automobiles, aerospace,
Applicable materialsCold rolled plate, pickled plate, high strength pl
Coil carThe support structure is type to assist the loadin
Expansion styleHydraulic block driven
Limitting roller width adjustElectric adjustment
Coil input supporting armHydraulic drive, touch screen control
Straightener numberHydraulic drive, touch screen control
adjustment wayElectric adjustment
Feeding line height adjust wayElectric adjustment
Upper correction rollerscan be lift off(optional design).
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
Product Description
GLK4-1300H 1300mm Width Unit Uncoiler And Feeder Machine For Automatic Stamping Line In Press Room

Capacities:

Coil width: 70mm-1300mm

Material thickness: 0.6mm-6.0mm

Coil weight: 10T

Line speed: 20m/min

Line length: 5m

Feeding length: Max.9999.99mm

Material: High Strength Material
1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverte
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Electrical Circuitry Control
Precision electric adjustment
10. Shearing Unit
Hydraulic shear
11. Optional Lubrication Unit
Automatic lubrication control, 20L
10. Outlet Support Bracket
Adjustable in length
Specification
Model
GLK4-1300H
Material
High Strength Material
Coil Width
70-1300 mm
Strip Thickness
0.6-6.0 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
7000 kgs
Feeding Speed
16-24 m/min
Feed Precision
±0.15mm
Straighten Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Auxiliary Rolls
Φ68mm * 220mm *3 groups
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
7.5 Kw
Servo Motor
14 Kw
* Machine Spec can be customized according to your specific demands.

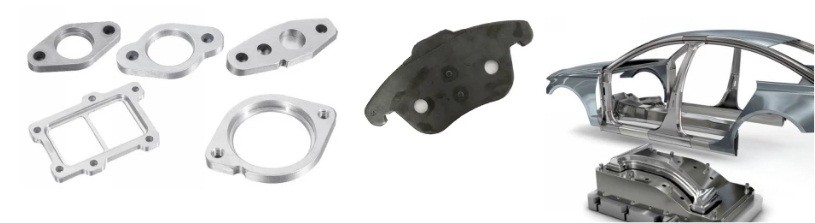

Application
High strength automotive parts: Brake pad, Tie bar, Damper etc.
High strength hardware parts

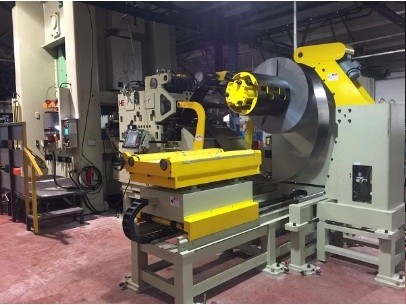

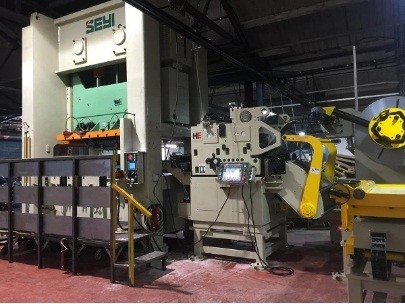

Decoiler straightener feeder 3 in 1 machine GLK4-1000GF for auto parts stamping in UK:

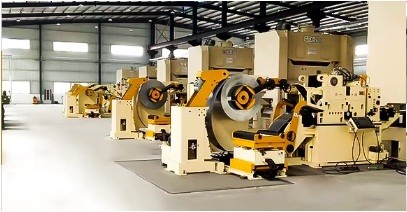

5 sets of decoiler straightener feeder 3 in 1 machine GLK4-H for automotive stamping:
