FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)

FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)

FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)
FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)FU-1000 (Horizontal Decoiler For High Speed Terminal Stamping)
CategoriesPallet Decoiler
AlbumView larger image
BrandHongEr
ModelFU-1000
FunctionAutomatic flat Uncoiler for high speed press
FeatureAutomatic pallet Uncoiler
NameDecoiler machine
CompactFeeder Machine
UsageDisk Uncoiler for high speed stamping
AttributeElectronic parts Flat material Uncoiler
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
Product Description
FU Horizontal Decoiler for High Speed Terminal Stamping
FU is HongEr pallet decoiler, ideal for high speed stamping line, such as terminal stamping, metal button and small electrical parts pressing line.

The feeding speed can reach 24m per min.

It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter.

FU-1000's Max. Coil O.D. can get 1000mm
Specification
Model
Max


 Coil  Width
Coil
   Thinkness
   Loading

 weight
Max Loading
Height
  Max  C.O.D
Feeding
Speed
Motor
FU-1000
150mm
0.1mm-1.0mm
800kgs
600mm
1000mm
24m/min
1 HPv
Application

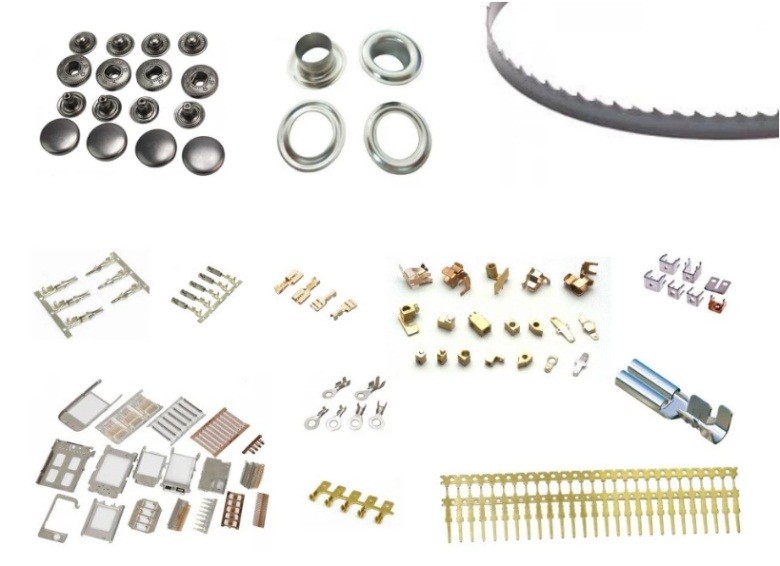

FU pallet decoiler is ideal for high speed stamping, such as terminal stamping, metal button and small electrical parts production line.

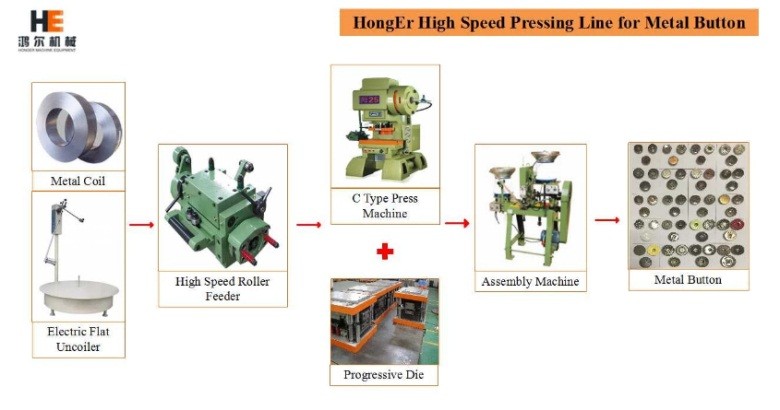

General configuration for metal button stamping line:

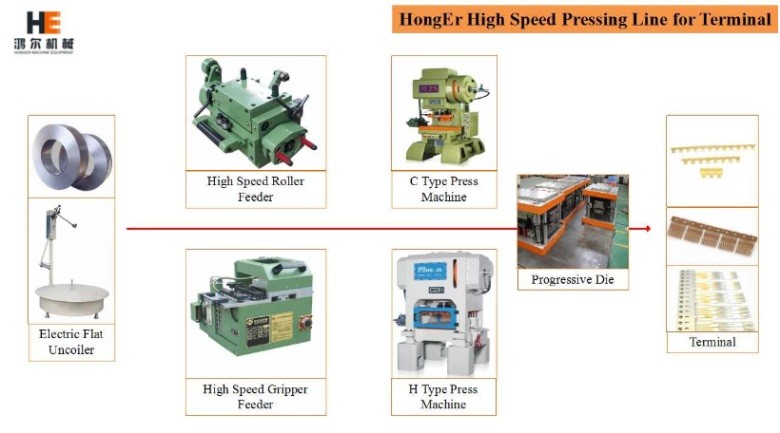

General configuration for terminal stamping line:

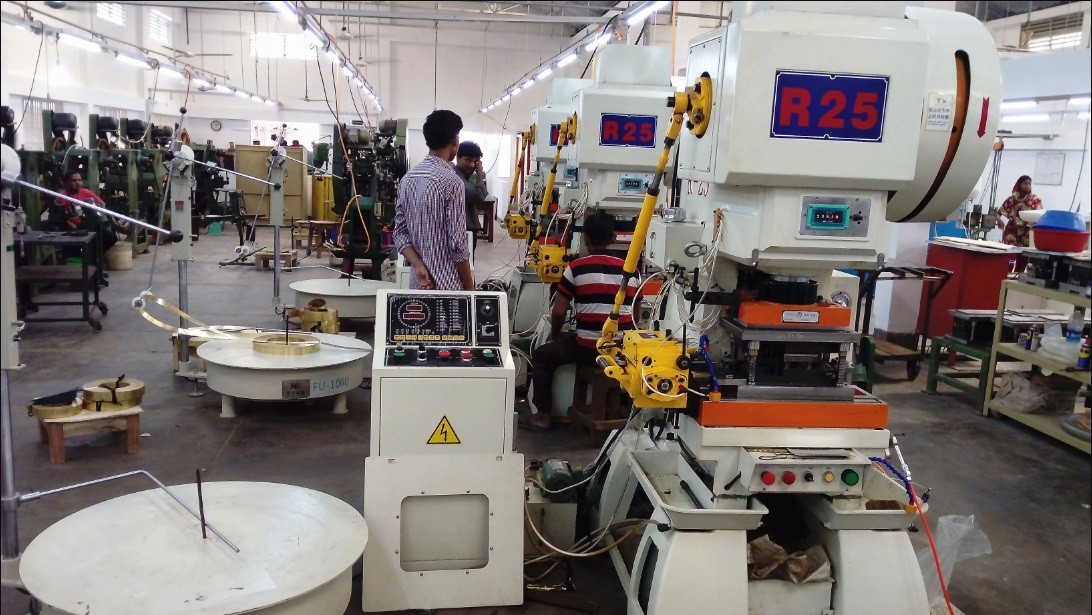

High Speed Metal Button Stamping Line to Bangladesh:
