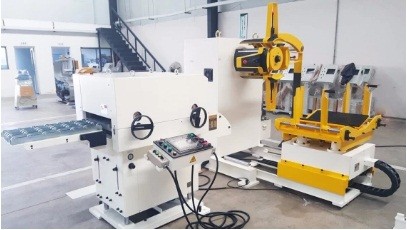

GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)

GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)

GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)
GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)
CategoriesGLK2 (0.3-3.2mm) Compact Press Feeding Line
AlbumView larger image
BrandHongEr
ModelGLK2-800
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
Product Description
GLK3-1300 NC control servo straightener feeder with decoiler for large sheet metal stamping
Capacities
Coil width: 50mm-800mm

Material thickness: 0.3mm-3.2mm

Coil weight: 5Ton

Line speed: 20m/min

Line length: 3.2m

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.

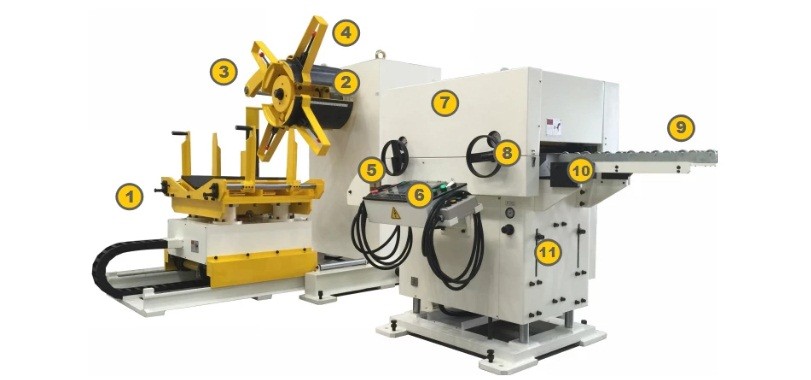

1. Coil Car
Hydraulic power, wear-resisting surface
1. Coil Car
Hydraulic power, wear-resisting surface
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Handwheel
Precision straightening value adjustment
10. Outlet Support Bracket
Adjustable in length
11. Optional Lubrication Unit
Automatic lubrication control, 20L
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK2-800
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width
50-800 mm
Strip Thickness
0.3-3.2 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ480-Φ520
Coil O.D.
Φ1200
Loading Capacity
5000 kgs
Feeding Speed
Max. 20m/min
Feeding Precision
±0.1mm
Straightener Rolls
Φ68mm * 7pcs
Pinch Rolls
Φ88mm * 2pcs
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
2.2 Kw
Servo Motor
4.5 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application

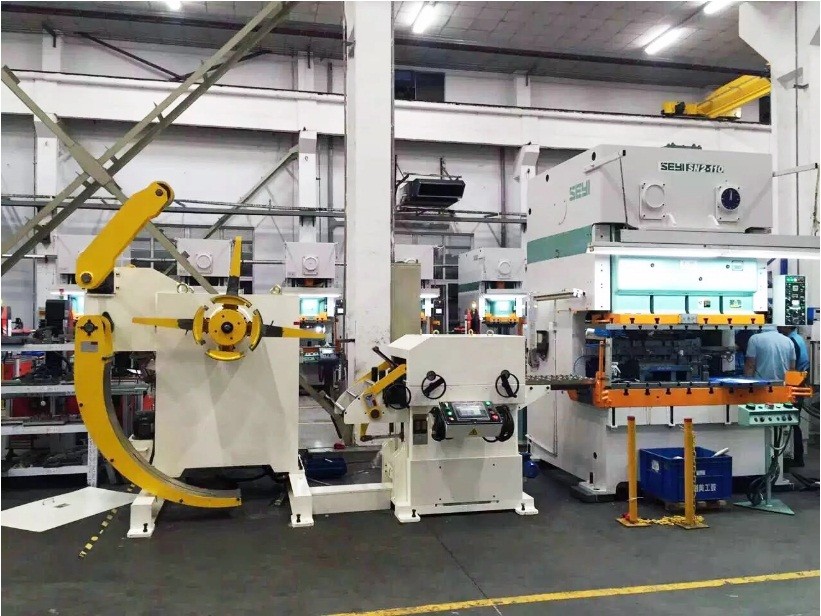

GLK2-800 decoiler straightener feeder with SEYI progressive stamping press:
Electronic components, Electrical accessories, Household appliance, Hardware tools
