GLK3 Decoiler Straightener Feeder (0.5-4.5mm)

GLK3 Decoiler Straightener Feeder (0.5-4.5mm)

GLK3 Decoiler Straightener Feeder (0.5-4.5mm)
CategoriesGLK3 (0.5-4.5mm) Coil Feeding Euipment
AlbumView larger image
BrandHongEr
ModelGLK3
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-07-22
Detail Information
Product Description

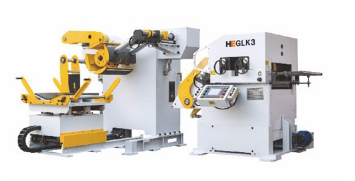

GLK3 Uncoiler Straightener Feeder Machine for Metal Fabrication

Capacities

Coil width from 70mm to 1300mm

Material thickness from 0.5mm to 4.5mm

Coil weights up to 10Tons

Line speed can reach 20m/min

Feeding Length: Max. 9999.99mm

Feeding Precision±0.1mm

Suitable for CRS, HRS, stainless, aluminum, copper etc.

1. Coil Car
Hydraulic power, wear-resisting surface
1. Coil Car
Hydraulic power, wear-resisting surface
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
7pcs GCr15 straightener rolls
9. Handwheel
Precision straightening value adjustment
10. Outlet Support Bracket
Adjustable in length
11. Optional Lubrication Unit
Automatic lubrication control, 20L
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK3-400
GLK3-600
GLK3-800
GLK3-1000
Coil width(mm)
50-400
50-600
50-800
50-1000
Coil thickness(mm)
0.3-4.5
0.3-4.5
0.3-4.5
0.3-4.5
Coil weight(kg)
3000
5000
7000
7000
Coil I.D.(mm)
480-520
Coil O.D.(mm)
1200
Feeding pitch(mm)
0-500
Speed(m/min)
16-24
Straightener roller(pc)
4 on top / 3 on botton
Feeding roller(set)
1
Servo motor(KW)
AC4.4
AC4.4
AC5.5
AC5.5
Uncoiler motor
AC2.2
AC2.2
AC3.7
AC3.7
Expansion
Hydraulic
Power(V)
220/380
Operating Air(Mpa)
0.49
Application
GLK3 decoiler straightener feeder is widely used in coil handling auto feeding line for metal parts stamping with press machine. It is popular in electric appliance, construction, furniture industry, automotive stamping, etc.

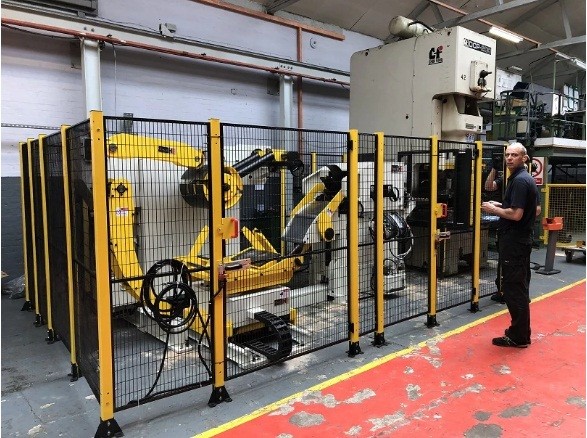

GLK3-400F
Customized GLK3
uncoiler straightener feeder machine
with coil car
compacted with Chin Fong press
for auto parts stamping
exported to UK

Metal stamping solution suggestion:
3 in 1 servo feeder + press machine

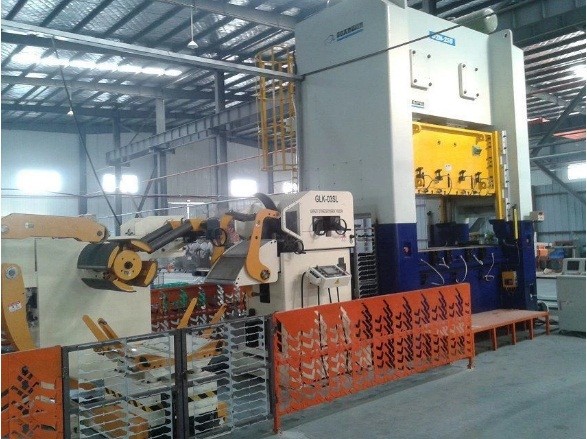

GLK3-600
GLK3 servo feeder machine
with coil car
compacted with large tonnage press
for metal stamping
exported to Indonesia

Metal stamping solution suggestion:
3 in 1 servo feeder + press machine
