RNC-300 Metal strip NC roll feeder for stamping press

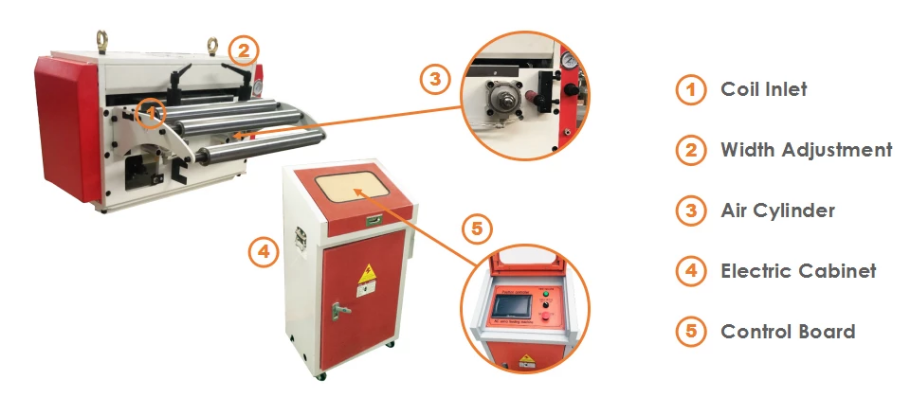

RNC-300 is HongEr servo roll feeder machine with pneumatic release.

It can feeds sheet metal coil material thickness from 0.2mm to 3.2mm, with max. feeding speed 20m/min.

Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

A mounting plate can help the servo feeder install to press machine easily.

Or you can choose a separate bracket for better stability.

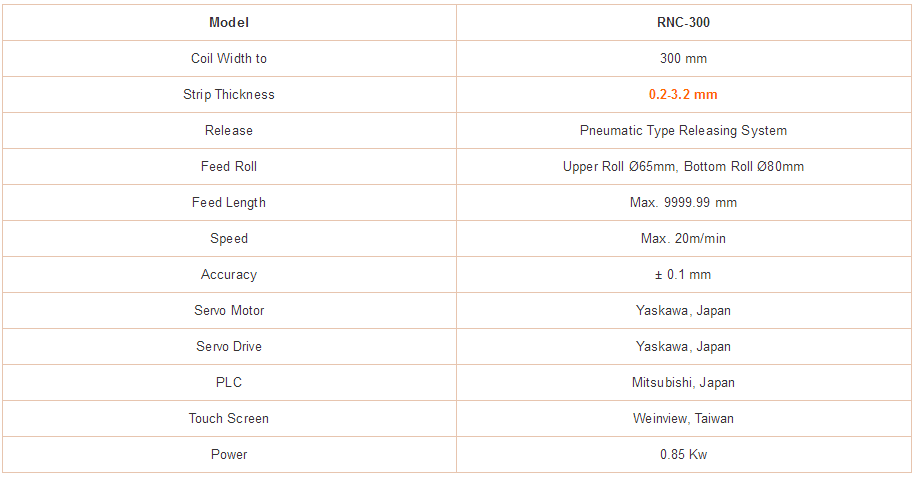

Specification
Application

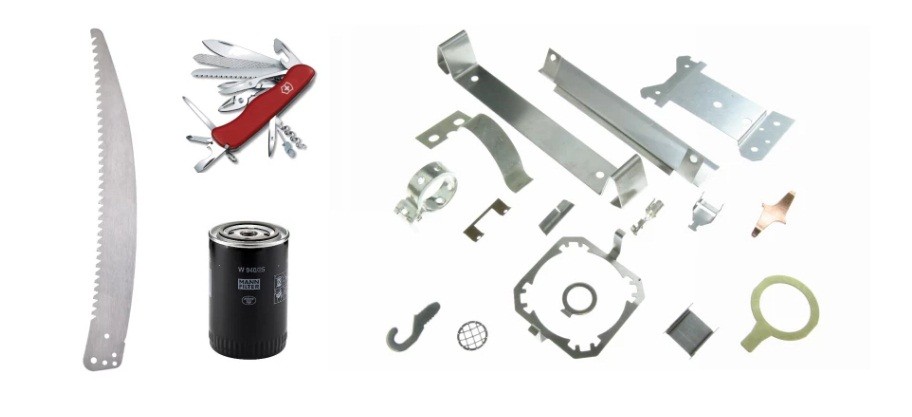

RNC servo roll feeder can be found in many different product line such as oil filter productionsaw blade stamping lineknives pressing linecar plate stamping etc.

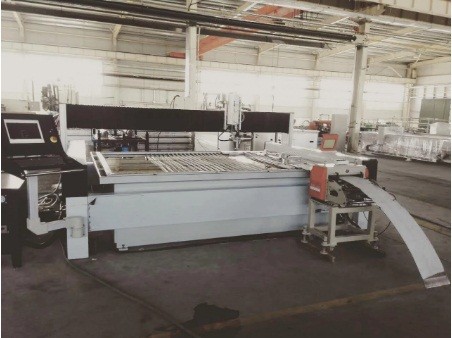

RNC servo feeder working with water jet cutting machine in New Zealand

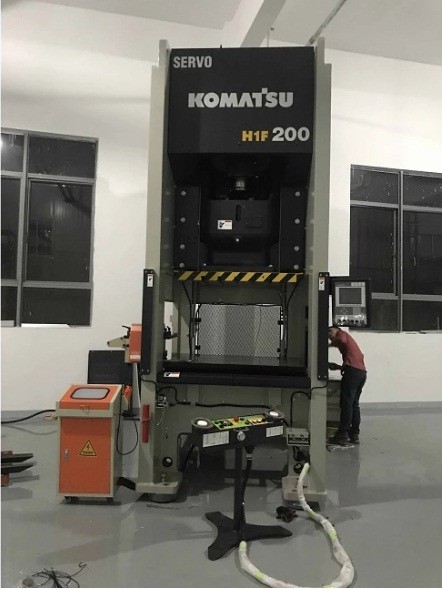

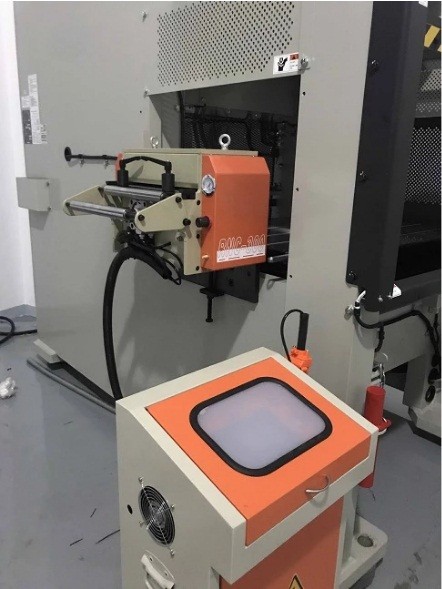

Servo roll feeder with KOMATSU press in our customer's new workshop
