Compact Coil Handling and Press Feeding Equipment GLK2-400A

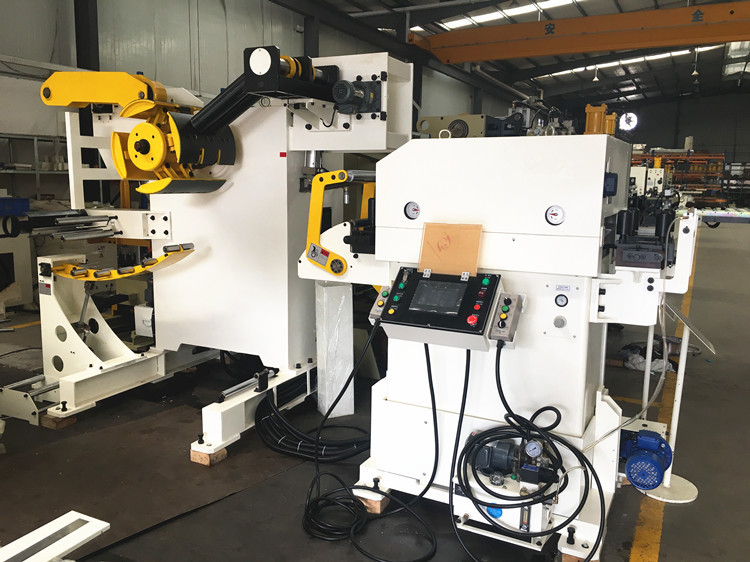

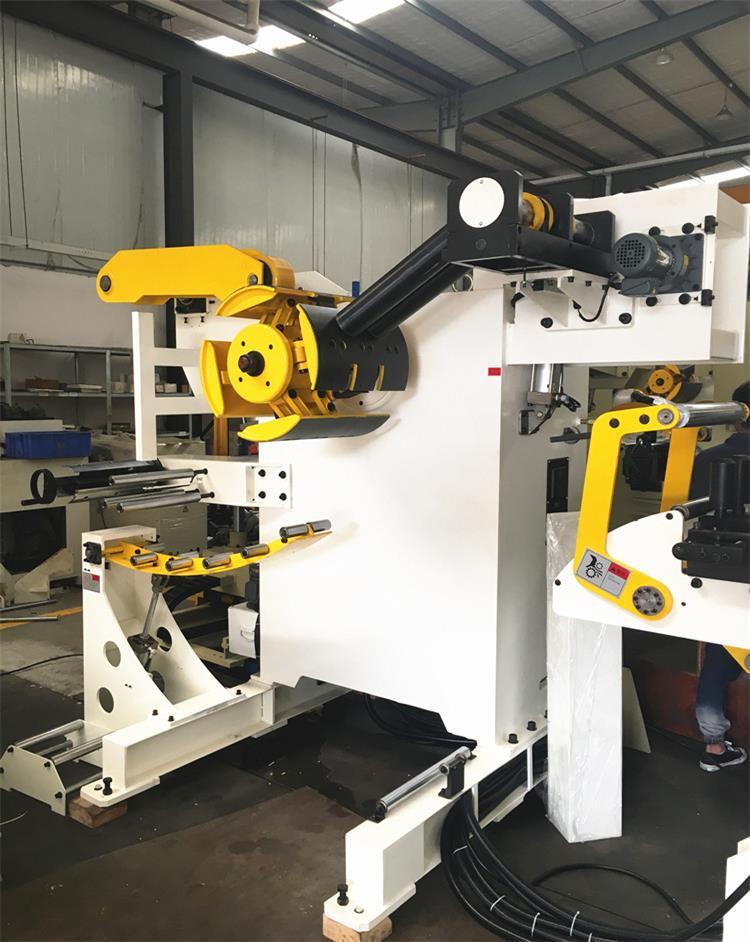

This is HongEr space-saving coil feeding line. The compact feeding equipment achieves profitable production in extremely reduced space.
Model:GLK2-400A
Coil width: 50-400mm
Coil thickness: 0.2-3.2mm
Coil weight: 5000kg
Coil I.D.: 508mm
Coil O.D.: 1400mm
Feeding direction:from left to right
Feeding speed: 16m/min
Expansion way: hydraulic
Brake mode: pneumatic
Power supply: 380V 50HZ
Feeding line height:1380±100
Feeding rolls:upper 1/ lower 1 Φ66

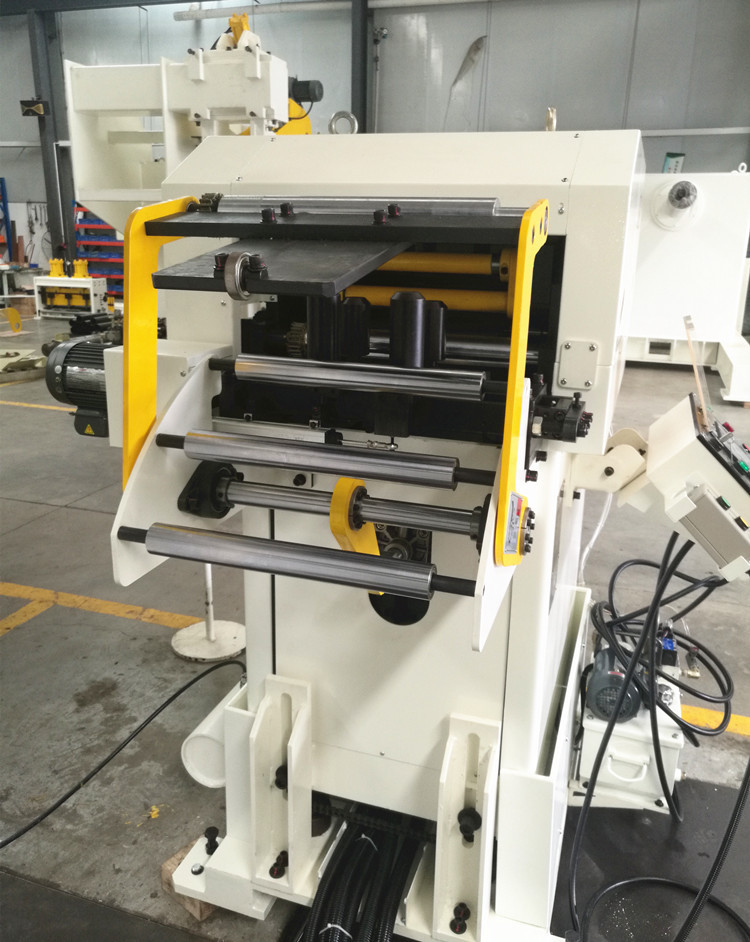

Straightening rolls:upper 6/ lower 5 Φ48
Servo motor: Yaskawa,Japan
Touch screen: Mitsubishi
With automatic oiling machine
With wrapping papaer automatic collecting machine for the decoling part
If you are looking for solution in metal stamping line, freely contact us info@he-machine.com.
